MaxLiner, in collaboration with Picote Solutions, offers an extensive array of equipment, designed to handle a variety of pipe materials and conditions.
This partnership brings together Picote’s renowned millers, cleaning, cutting and removal tools with MaxLiner’s distribution capabilities and field support … providing you with access to top-tier equipment for any project.
MaxLiner: Our selection includes a diverse range of tested and field proven Picote equipment perfect for preparing pipes for rehabilitation.
Easy Access and Purchase: Contractors can easily access and purchase this equipment directly from their MaxLiner representative or through our online platform, www.shopTRENCHLESS.com. This convenient access ensures that you have the right tools at the right time, enhancing your project’s efficiency and effectiveness.
With MaxLiner and Picote, ensure your projects achieve optimal results with our advanced equipment solutions and field technical support, tailored to meet the demands of the industry.

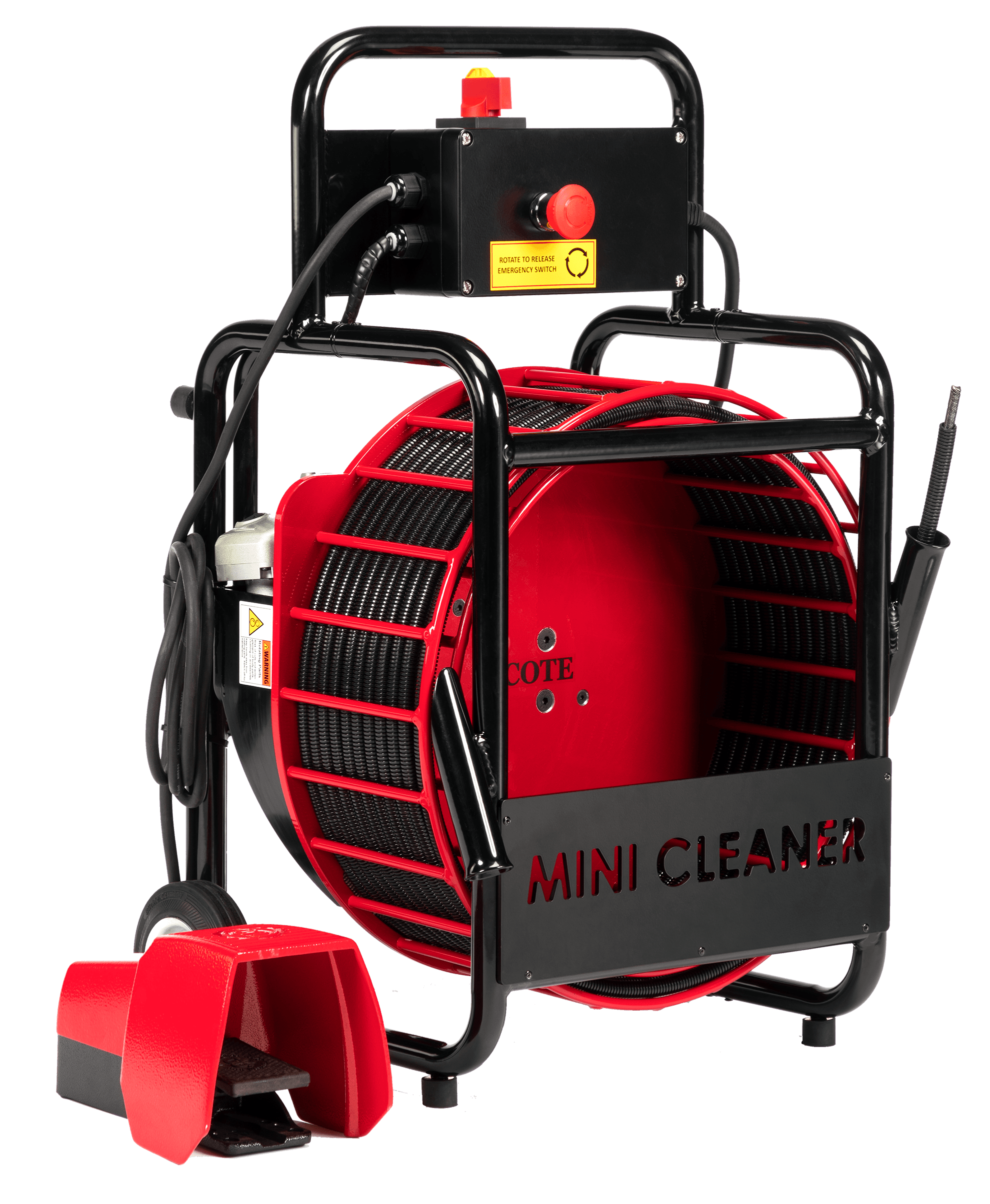

The Picote Cleaner family features high speed, high torque machines for cleaning, descaling and removing roots in smaller pipes.
Standard safety features include: flexible protective outer shaft casing making the cable safe to hold, shielded operator presence foot control, safety clutch, emergency stop switch.

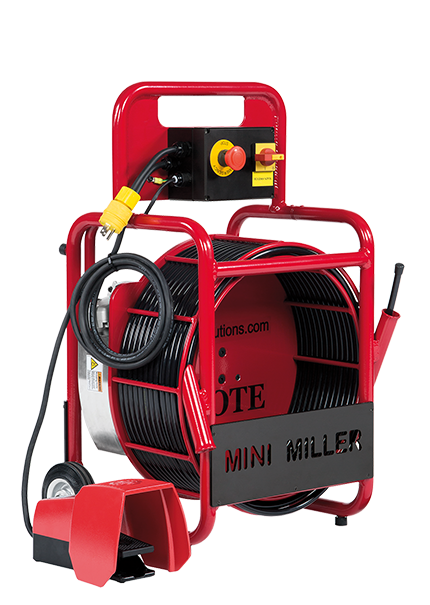

For 1¼-3″ | DN32-75 pipes
Fed by a standard wall outlet (in most cases) and weighing in at 144 lbs | 65 kg this is a great option for high-speed cleaning of 2-6″ | DN50-150 pipes.
Picote Millers are state-of-the-art mechanical machines developed by Picote (Finland) for the internal cleaning and rehabilitation of small-diameter pipelines. They’re widely used when traditional methods like high-pressure jetting fall short.
Safety-first design
Each Miller comes equipped with safety features like protective outer casings, electronic safety clutches, and emergency stop controls. Operators can work confidently in tight, challenging environments.
Fast and efficient cleaning
With rotation speeds between 500 and 2,900 RPM, Millers quickly remove tough deposits, scale, roots, concrete, failed liners, and more — often without requiring water.
Compact and portable
Ranging from around 60 lbs to 208 lbs | 27 kg to 130 kg, Millers are significantly lighter and more transportable than bulky jetting rigs, making them ideal for tight job sites and quick deployment.
Versatile and adaptable
Picote Millers support a wide range of pipe materials (plastic, clay, cast iron, concrete, etc.) and diameters — from 1 ¼” – 12” | 32mm to 300mm — especially when paired with various tool attachments.

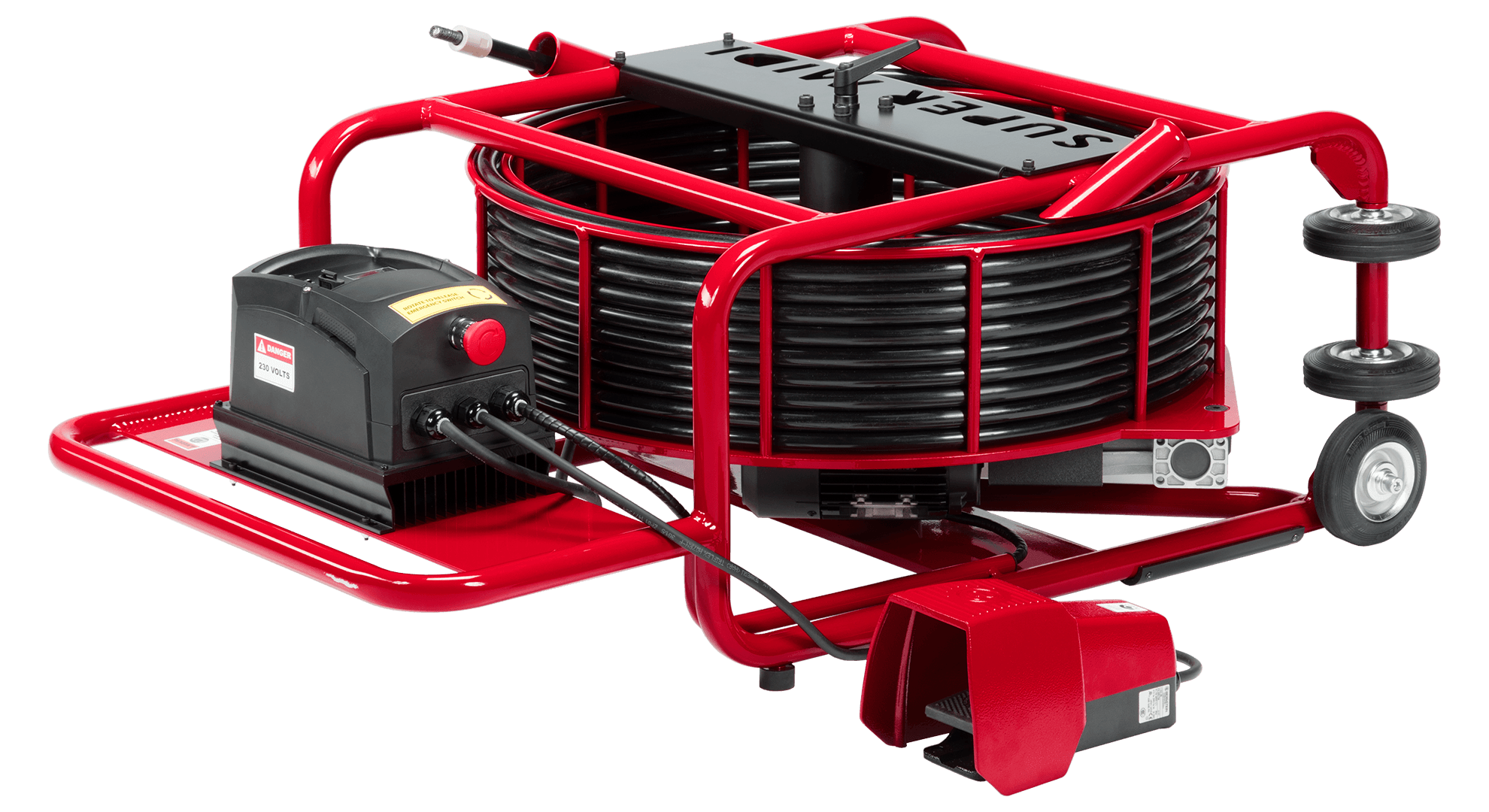

The Super Midi fits neatly between the Midi Cleaner and Maxi Miller capabilities, with the strength of ½” | 12mm shaft but with thinner outer casing providing greater flexibility around bends. Fed by a standard wall outlet (in most cases) and weighing in at 152 lbs | 69 kg this is a great option for high-speed cleaning of 3-6″ | DN70-150 pipes.

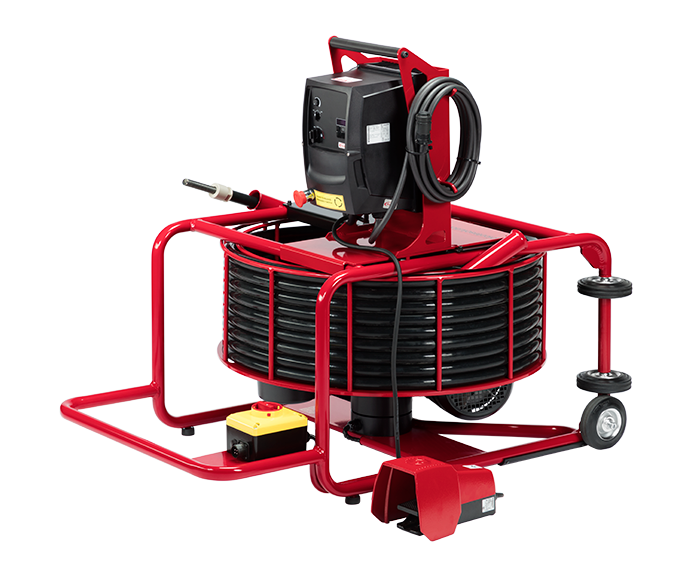

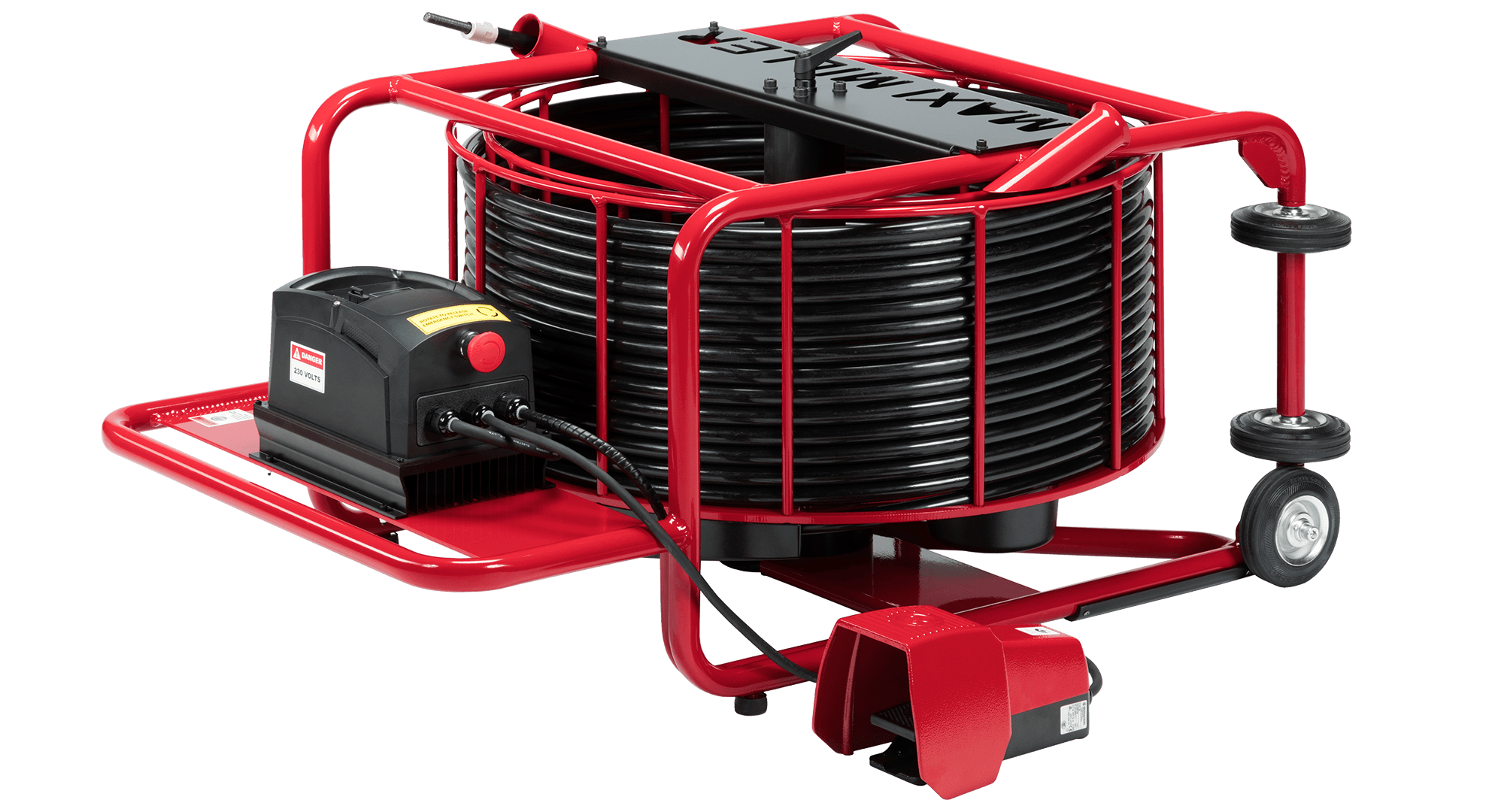

The Maxi Millers is a high-speed, high torque powerhouses for cleaning, removing hard deposits or failed CIPP linings, lateral reinstatements and Picote Brush Coating™.
The most powerful Miller for cleaning, removing hard deposits, roots, concrete, rock, slurry or failed CIPP linings. Also suitable for reinstatements. Features ¾” | 18mm Flexible Shaft.
Picote Mini Miller Product Fact SheetDownload (850.85 KB)Picote Super Midi Miller Product Fact SheetDownload (989.40 KB)Picote Maxi Miller Product Fact SheetDownload (981.86 KB)Picote Maxi Coating Pump Product Fact SheetDownload (1.21 MB)

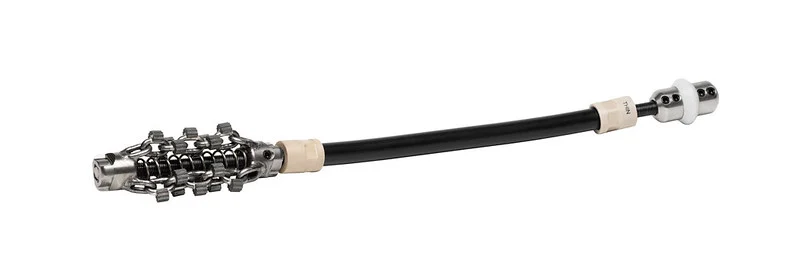

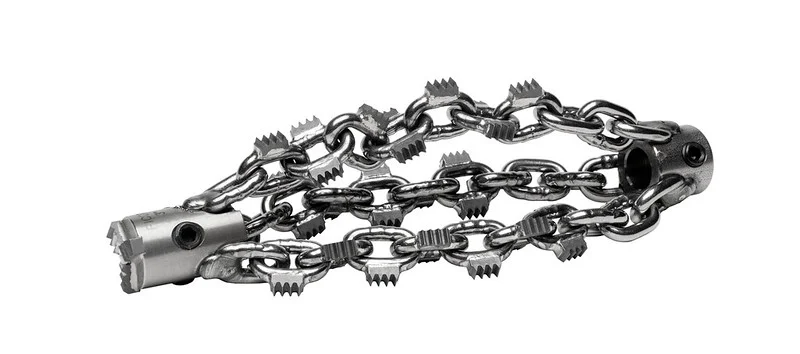

Picote Original Chains are a good all-around cleaning option and are often referred to as the starter chain because they are adjustable. This allows you to make minor adjustments to the chain size to compensate for reduced pipe interior for initial cleaning of blocked pipes and then readjust them to their optimal diameter. The Tiger Drill Chain features an integrated Front Drill Head to push through blockages, roots and lightly collapsed liners.

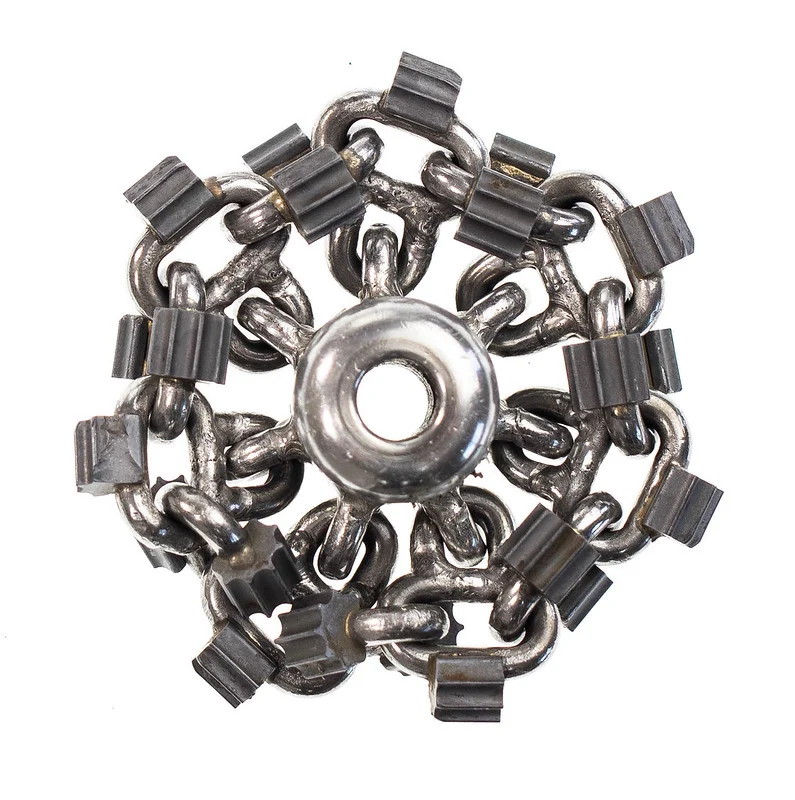

Picote Cyclone chains are available in 5 versions: Standard, Premium, PVC, Tiger and Tornado and are also available for Robotic Cutters.
Picote self-adjusting 3D Cleaning Chains are designed to exchange setup time for working time. By controlling the speed, the 3D Chain continues to expand so you can now use one tool to do the job of several.
The Original Chains are available in 5 versions:
Picote Original Chains Product Fact SheetDownload (888.72 KB)Picote Cyclone Chains Product Fact SheetDownload (1.07 MB)Picote 3D Chains Product Fact SheetDownload (1.15 MB)

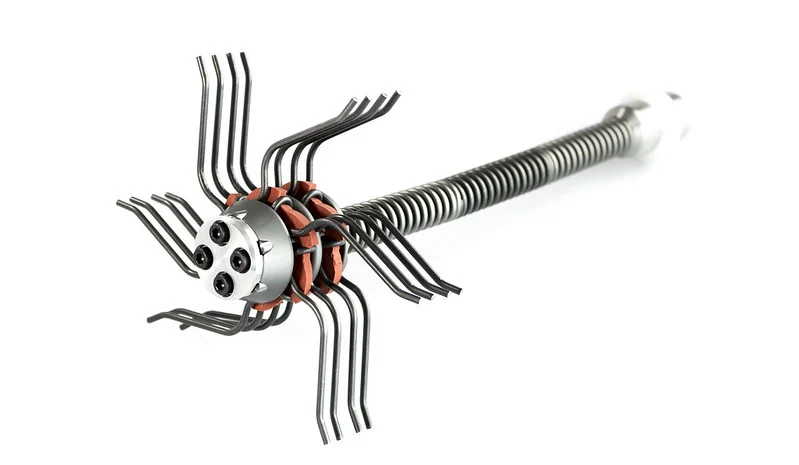

The Smart Spider is highly efficient tool for cleaning damaged pipes with missing bottoms or holes where typical chains or other descaling methods may be too aggressive, get stuck in the missing sections or holes, or can come out from the pipe.
Drain cleaning professionals often run into situations where typical chain tools or abrasive cleaning methods can do more harm than good. The Smart Spider provides a safe yet highly effective cleaning solution.
Also good for Fats, Oils & Grease (FOGs) and as a carrier for a CCTV Camera Head over damaged/missing sections to assist in the inspection of the full length of the pipe.
Versatile tool for tough cleaning scenarios including tuberculation, roots, calcite, and mineral/uranic scale in cast iron, concrete, clay, and PVC pipes.

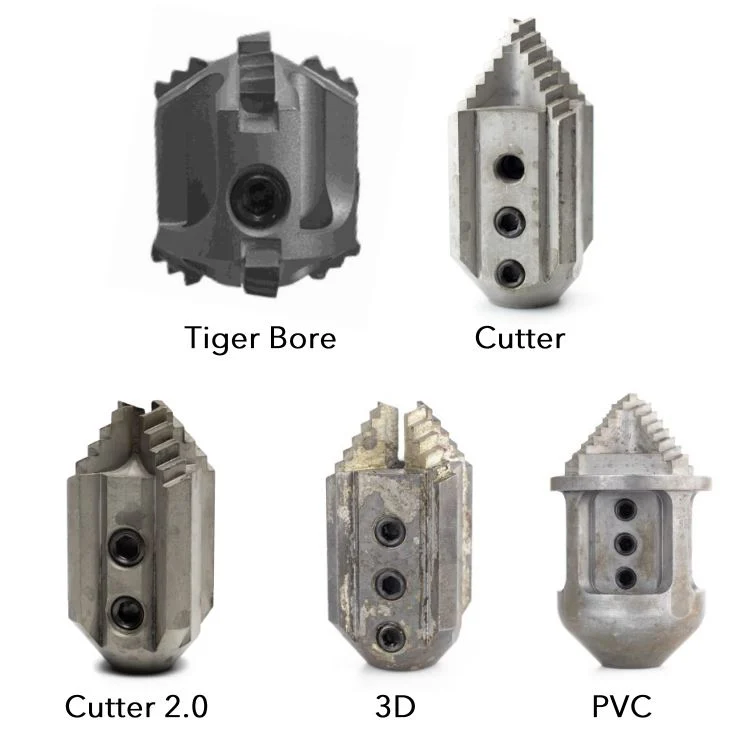

The ability to attach a front drill head further broadens the capabilities and makes it a formidable tool for clearing blockages. The legs are designed to remove the remainder of the blockage.
The self-centralizing design adapts to the pipe size and allows the tool to pass through 90° bends, diameter transitions, and P-traps. It can also be used in damaged pipes where the bottom is missing provided the missing section is no larger in size than the Sweeper body.

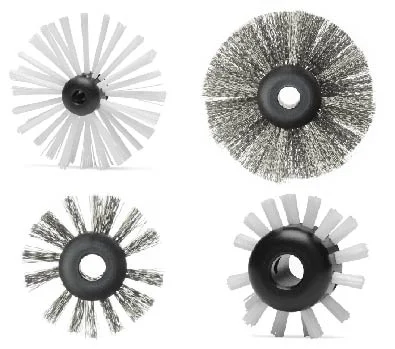

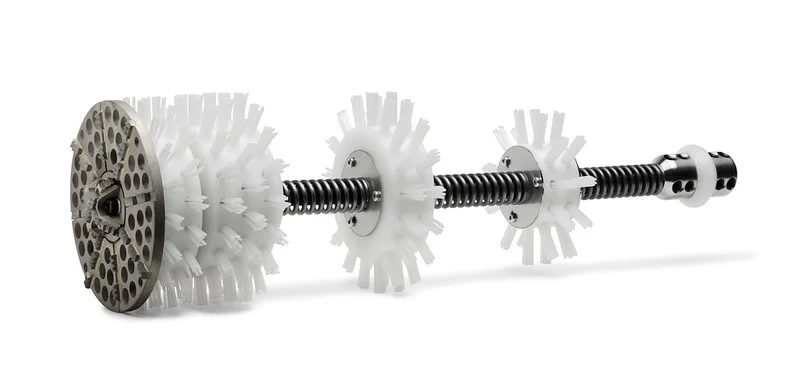

Picote offers both nylon bristle and wire bristle cleaning brush options. Both are good for cleaning in plastic and fragile host pipes.
The nylon cleaning brushes are extremely gentle on the host pipe but are excellent at cleaning soft blockages due to the unique high-speed capability of Picote Millers. They are available for 1¼-12” | DN32-300 pipes.
Wire cleaning brushes are available for 2-12” | DN50-300 pipes, and are designed for removing fine dust or light mineral deposits.
Cleaning Brushes made from BOTH Nylon and Wire are also now available. For cleaning only. Available for ⅓ and ⅜” | 8mm and 10mm shaft sizes.

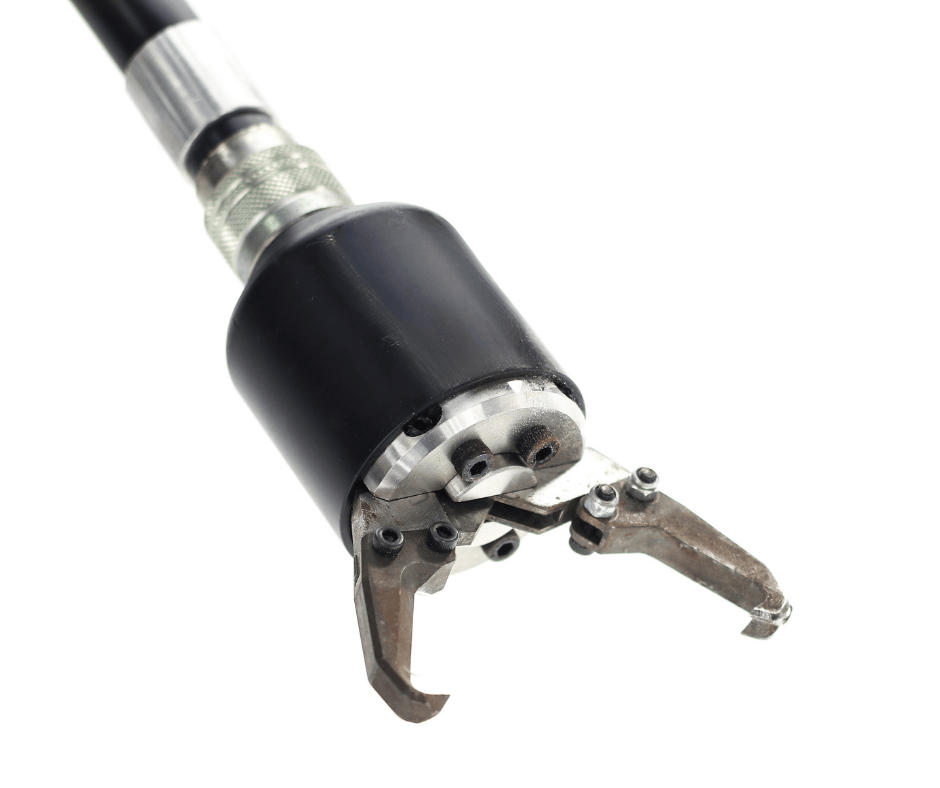

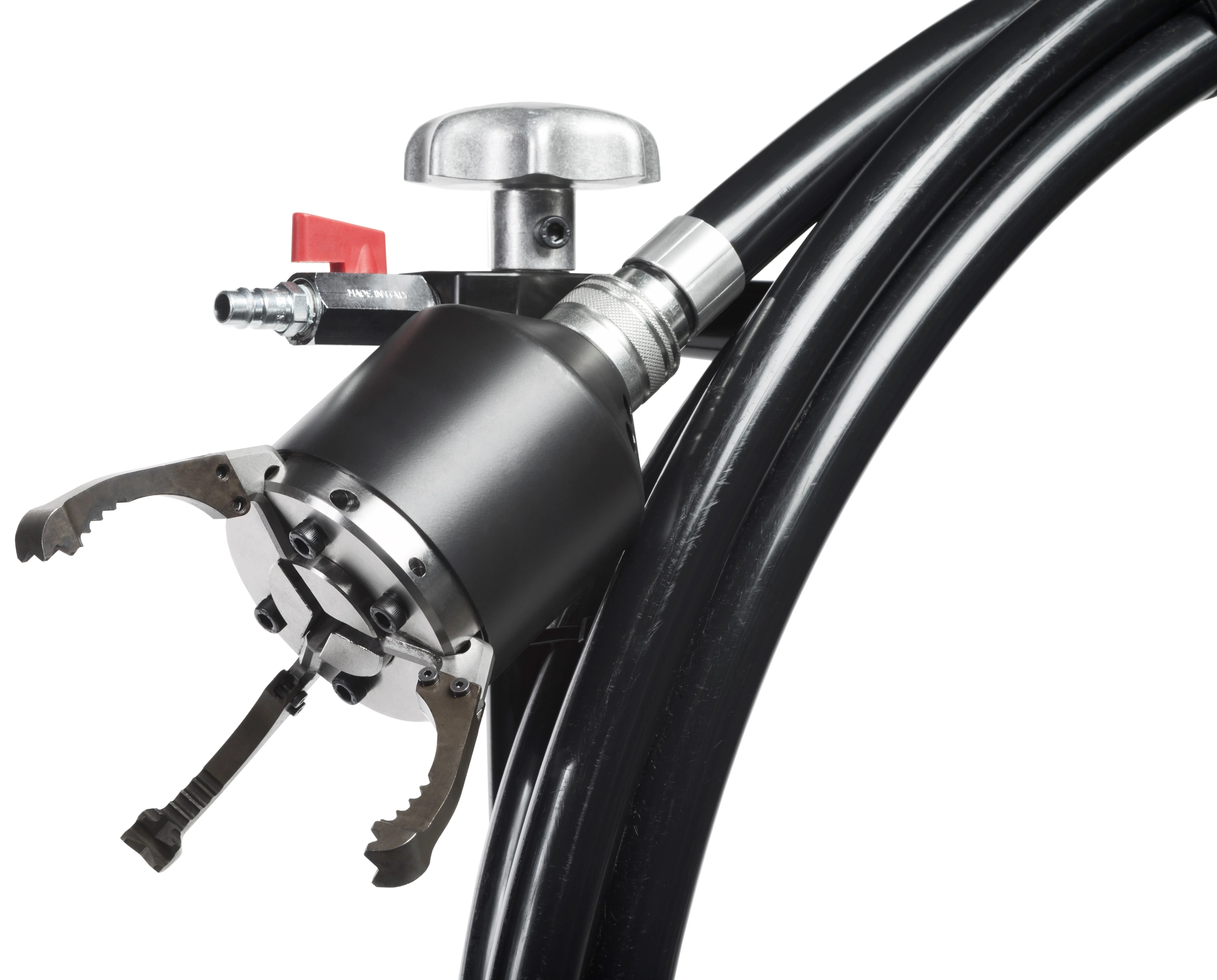

Picote Grabbers eliminate the need for excavation. Retrieve lost items or foreign objects with ease and precision.
Picote Small Grabber Product Fact SheetDownload (1.10 MB)Picote Grabber Product Fact SheetDownload (1.22 MB)

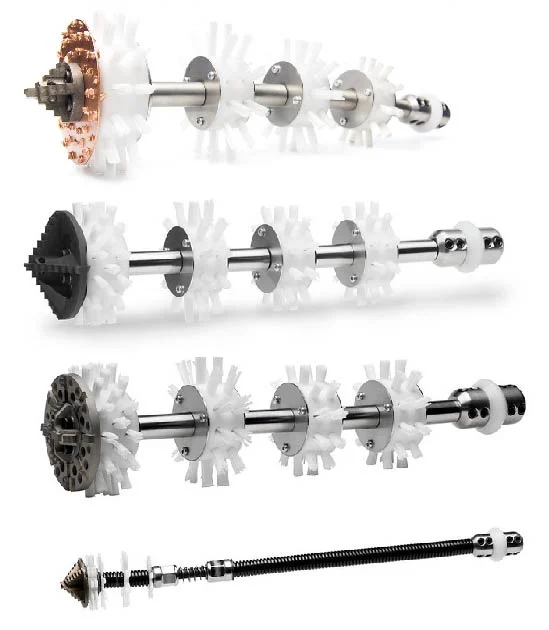

Picote offers a range of tools to tackle concrete and liner removal, suitable for your Maxi Miller or Maxi Power+ depending on the pipe diameter.

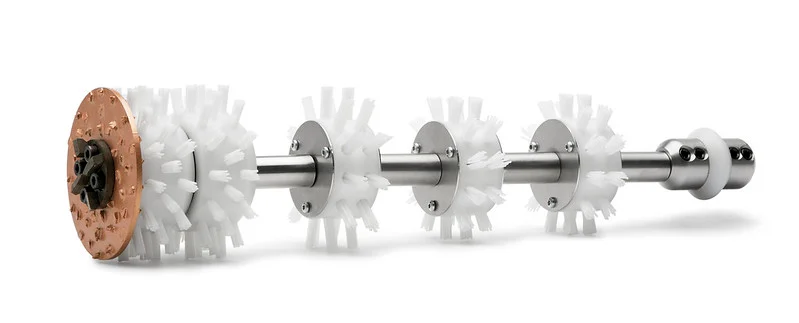

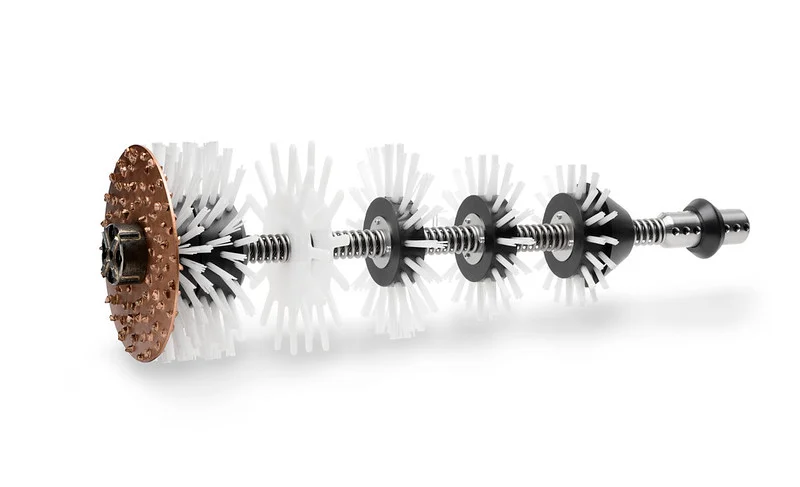

Two tough jobs, one tougher tool. The Tiger Twister Liner and Concrete Remover is two times faster removing failed CIPP linings than the regular Twister Liner Remover. Also very efficient for concrete removal. A must-have for every tool box.
For efficient concrete, grout, slurry, and rock removal. Dual front brushes provide added stability while the heavy duty Front Metal Panel with large carbides and specialized Front Drill Head deliver great results.
The Twister Liner Remover’s dual front brushes provide added stability, while the heavy duty front panel with its large carbides and front drill head, make for efficient collapsed liner removal.
The Twister Concrete Remover+ for the Picote Maxi Power+ has dual front brushes for added stability, a heavy-duty front panel with large carbides, and a specialized Front Drill Head with star carbides, all of which combine for powerful concrete, grout, slurry, and rock removal. Follow up with the Smart Cutter+ and/or a Tornado or Premium Cyclone Chain to remove any residual concrete from the edges of the pipe.
Picote Twister Concrete Remover Product Fact SheetDownload (637.34 KB)Picote Twister Liner Remover Product Fact SheetDownload (579.72 KB)Picote Twister Concrete Remover+ Product Fact SheetDownload (631.74 KB)
Picote has a range of tools for reinstating lined connections and for cutting out roots and other obstructions in the pipe.

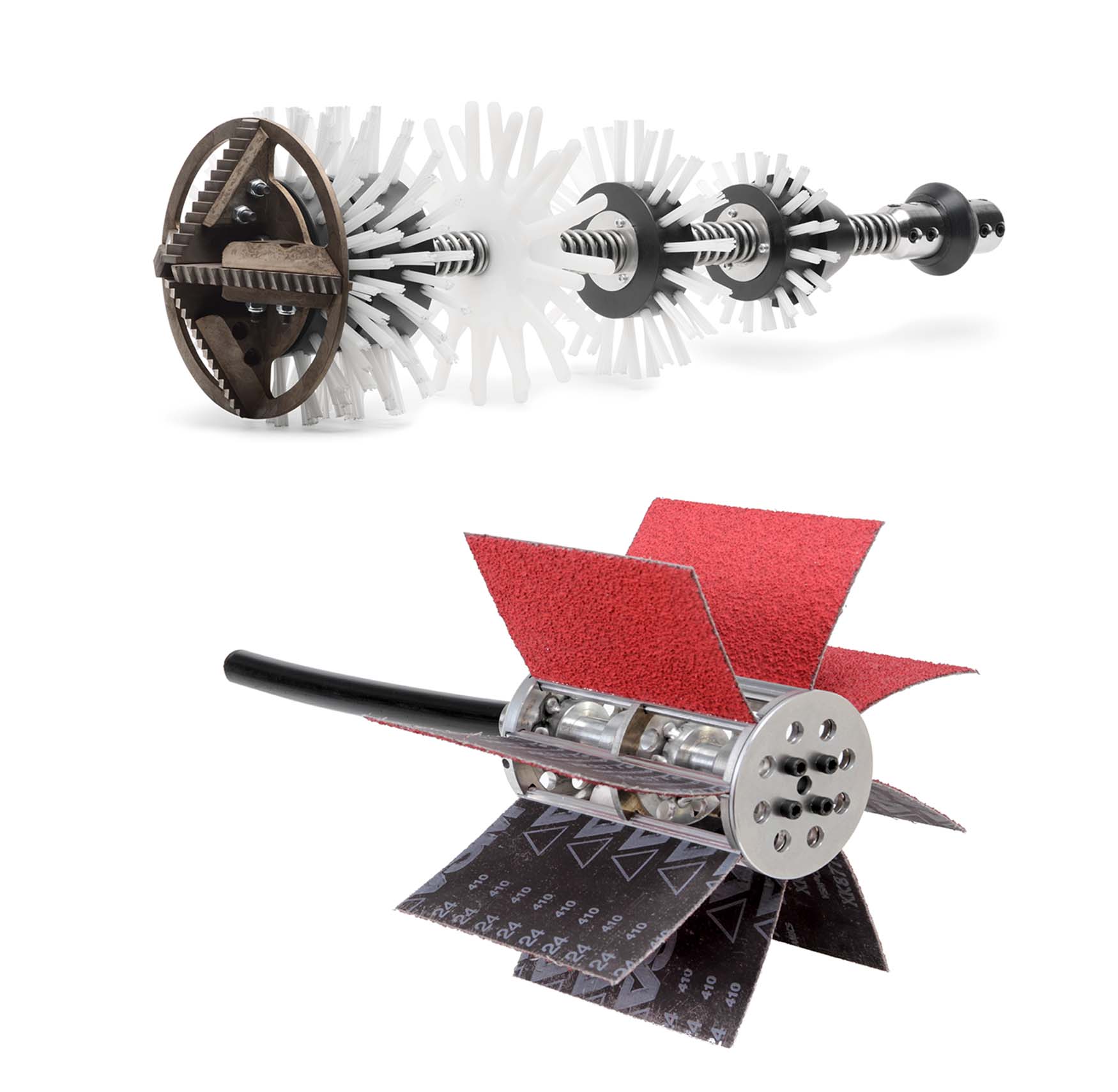

Quickly reinstate lined connections with the Maxi Power+ with custom tooling from:

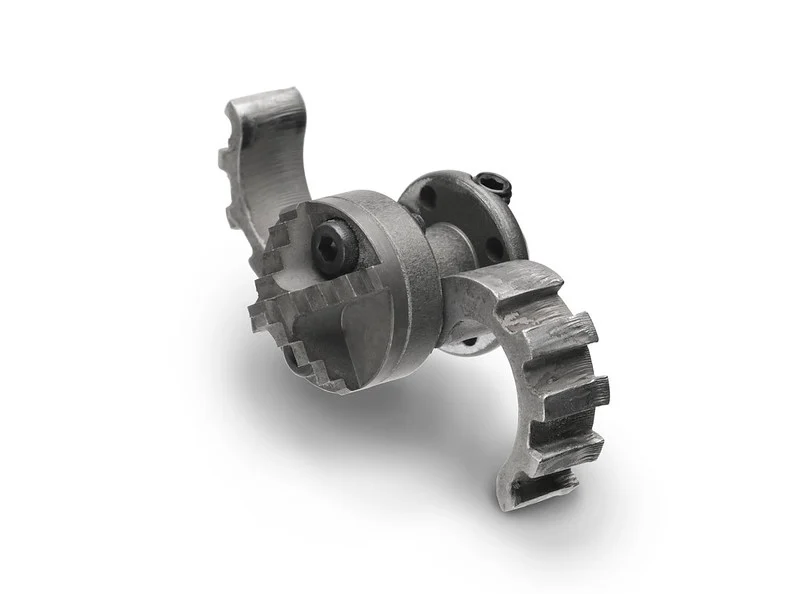

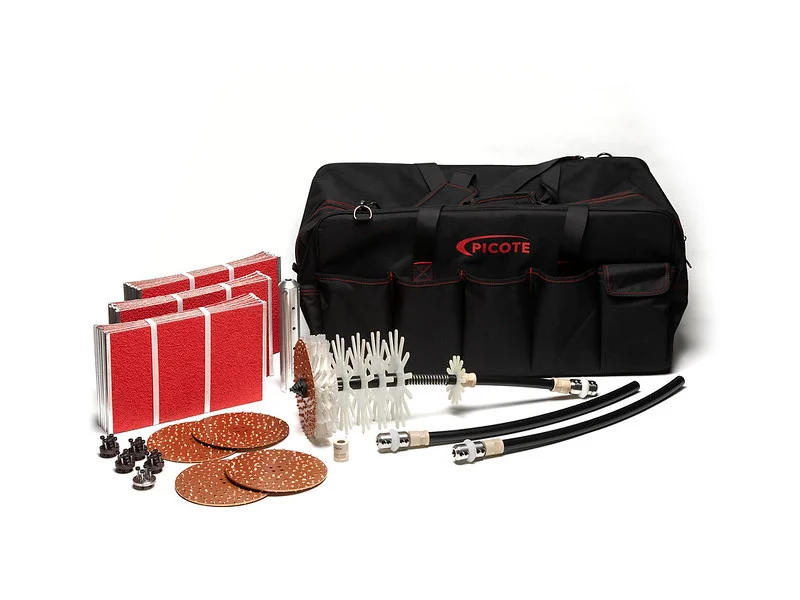

Picote has a range of Twister Lateral Cutters available for quick and easy reinstatements, powered by Picote Millers.
Cutting Kits combinedDownload (4.64 MB)Picote Special Drill Head Product Fact SheetDownload (1.07 MB)
