Standard Liner Systems

The Perfect Fit For Straight Pipe Projects

Standard liners are polyester fiber felt liners made for landing the liner at a definitive point and straight piping applications.

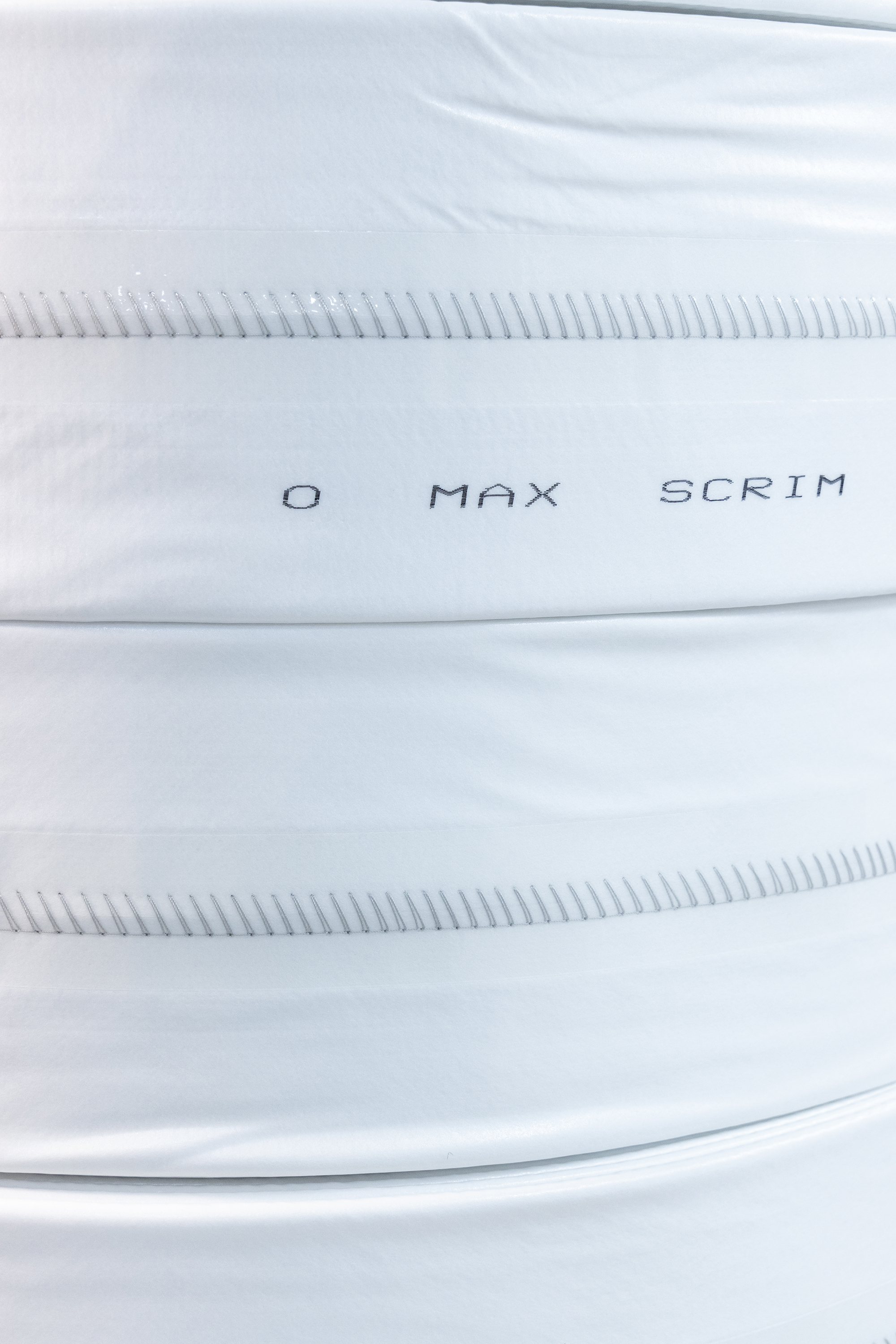

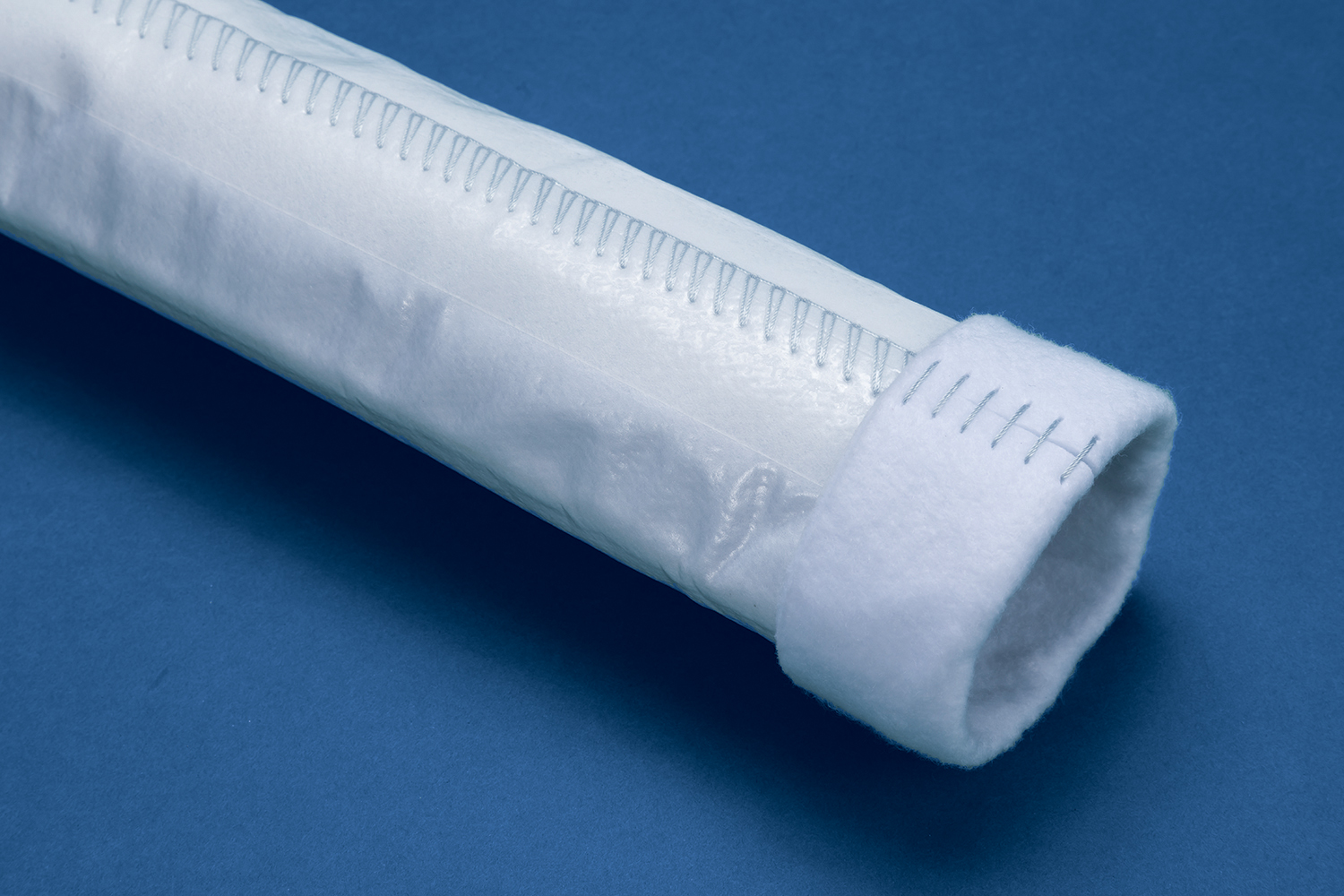

Max SCRIM Liner (PU)

Max SCRIM Liner is a non-woven, needle-punched polyester fiber felt offered with either PU or PVC coating. There is a 100% continuous polyester reinforcement filament (SCRIM) integrated into the fabric to limit longitudinal stretch during installation. Tube forming and seam bonding are achieved through a specially designed thermal welding and/or an overlocking chain stitched sewn process — creating a superior, high-performance impermeable liner designed for accuracy.

  • Open-End (Blindshot) with Calibration Tube
  • Closed-End
  • Ideal for landing the liner at a definitive point and straight piping applications. This non-stretch liner may be used on sweeping bends up to 45° with slight wrinkling. Manufactured transitional liners and custom sizes are available.

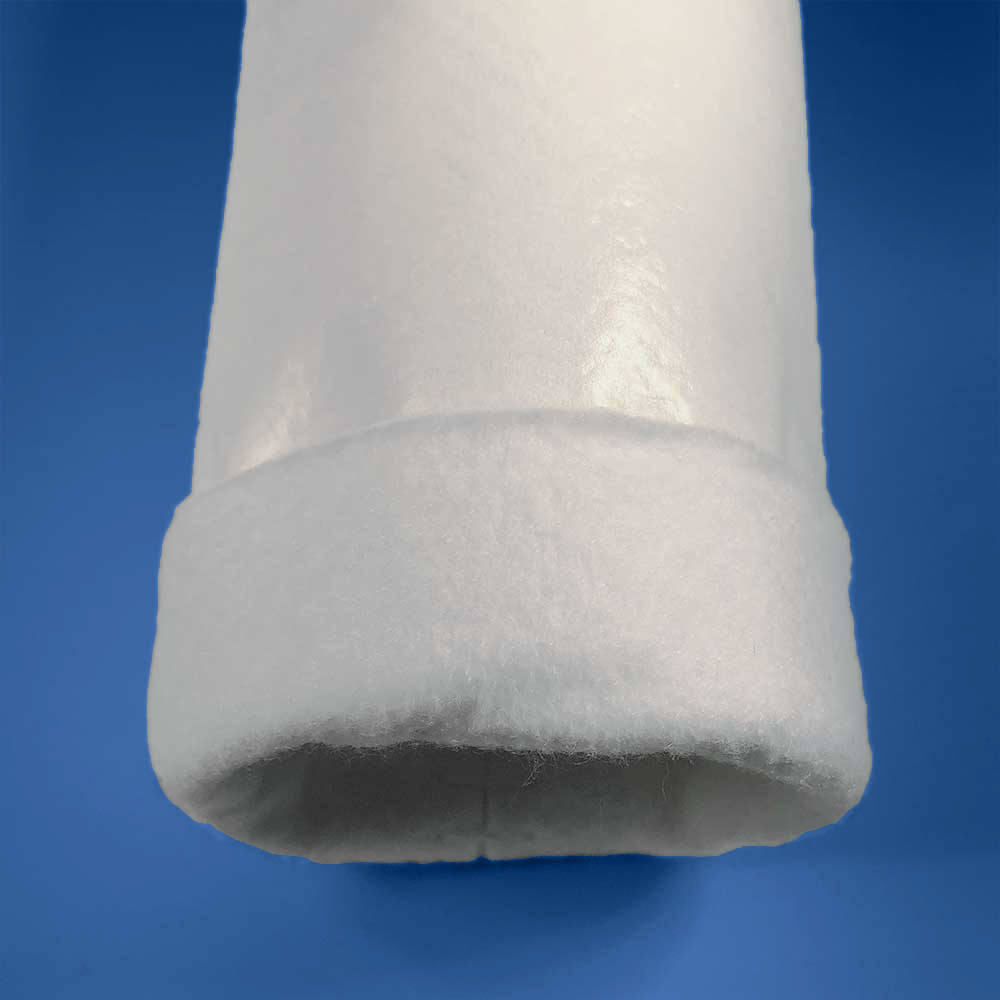

Max LinerTube™ (PU)

Non-woven, needle-punched polyester fiber felt offered with PU coating designed for sweeping bends and very minimal stretch.

  • Open-End (Blindshot) with Calibration Tube & Closed-End
  • Straight piping applications with minimal stretch.
  • Sweeping bends up to 45°
  • Manufactured transitional liners and custom sizes are available
  • PVC Compatible with MaxPox VE

Max LinerTube™ (VE)

Non-woven, needle-punched polyester fiber felt designed for sweeping bends and very minimal stretch.

  • Open-End (Blind shot) with Calibration Tube & Closed-End
  • Straight piping applications with minimal stretch.
  • Sweeping bends up to 45°
  • Manufactured transitional liners and custom sizes are available
