Small Diameter CIPP Lining Equipment: Precision and Efficiency with MaxLiner^®

MaxLiner delivers unparalleled solutions for small diameter pipe rehabilitation equipment. Recognized for its industry-leading CIPP systems, MaxLiner provides contractors with robust, efficient, and easy-to-use liner inversion equipment ideal for lateral and vertical pipelines. This comprehensive lineup ensures that every aspect of small diameter lining is covered, from installation to curing, with systems designed to minimize disruption and maximize efficiency.

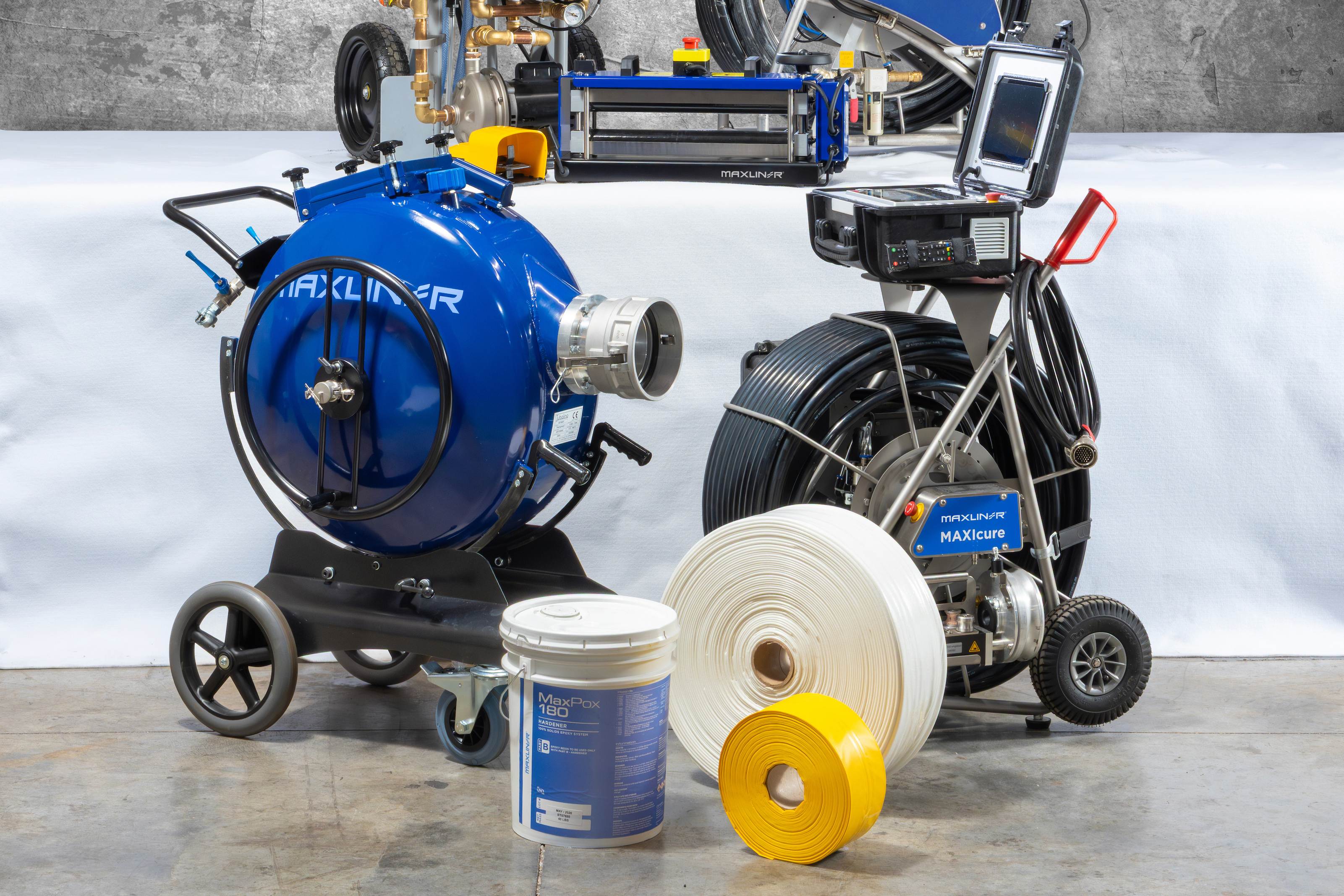

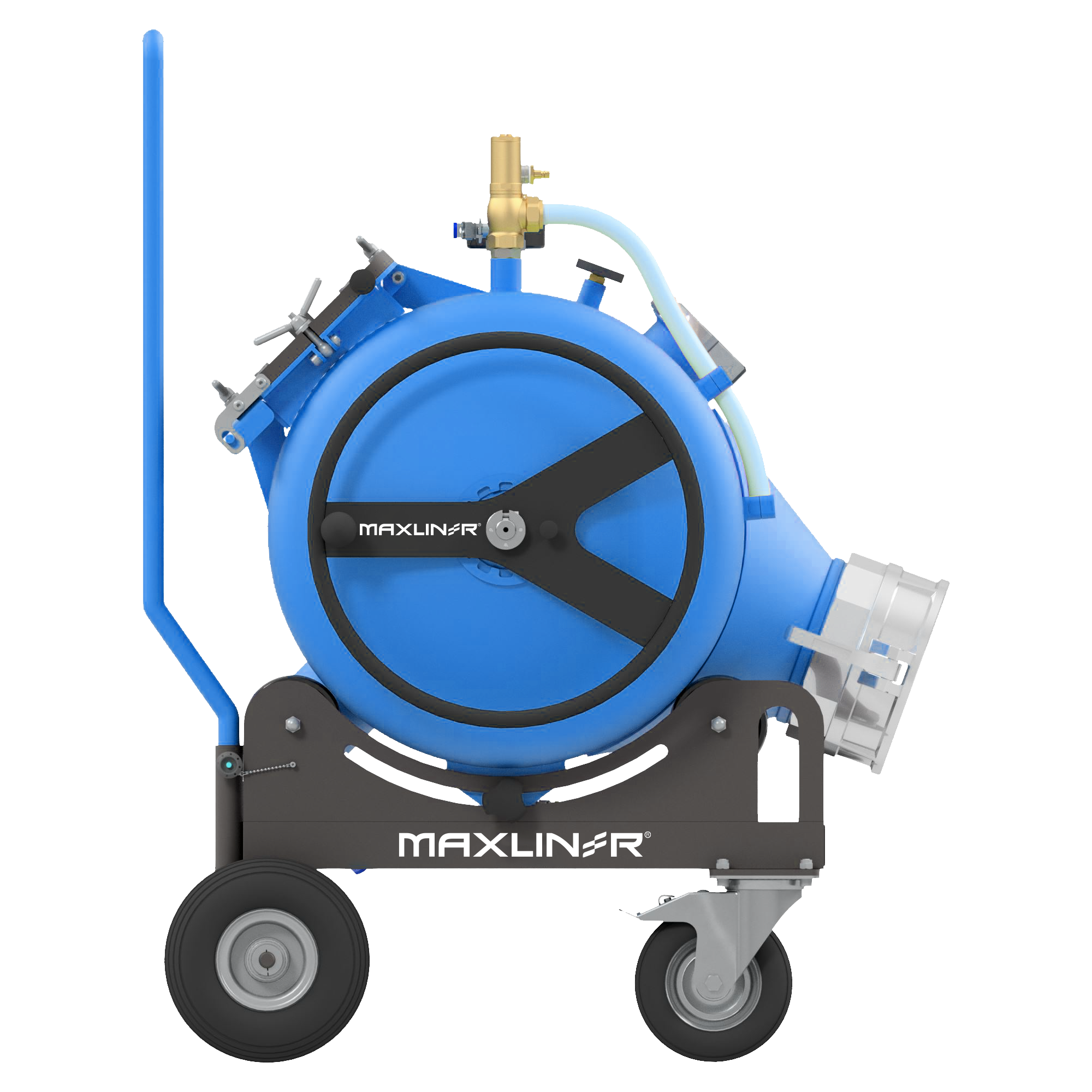

MaxDrum 500

Inversion Drum for Liners Up to 6” | DN150
Max Length of 60 ft | 18m

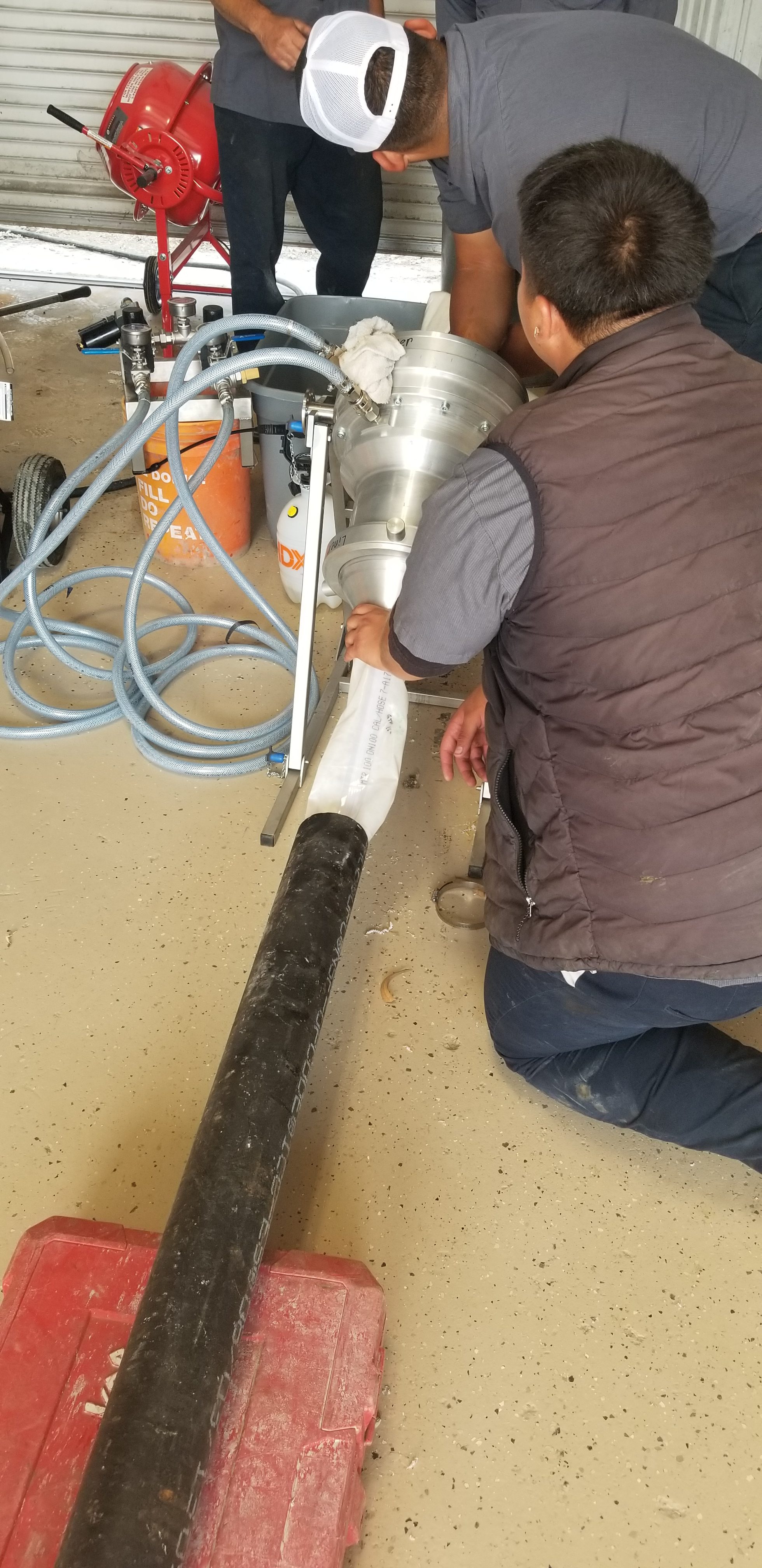

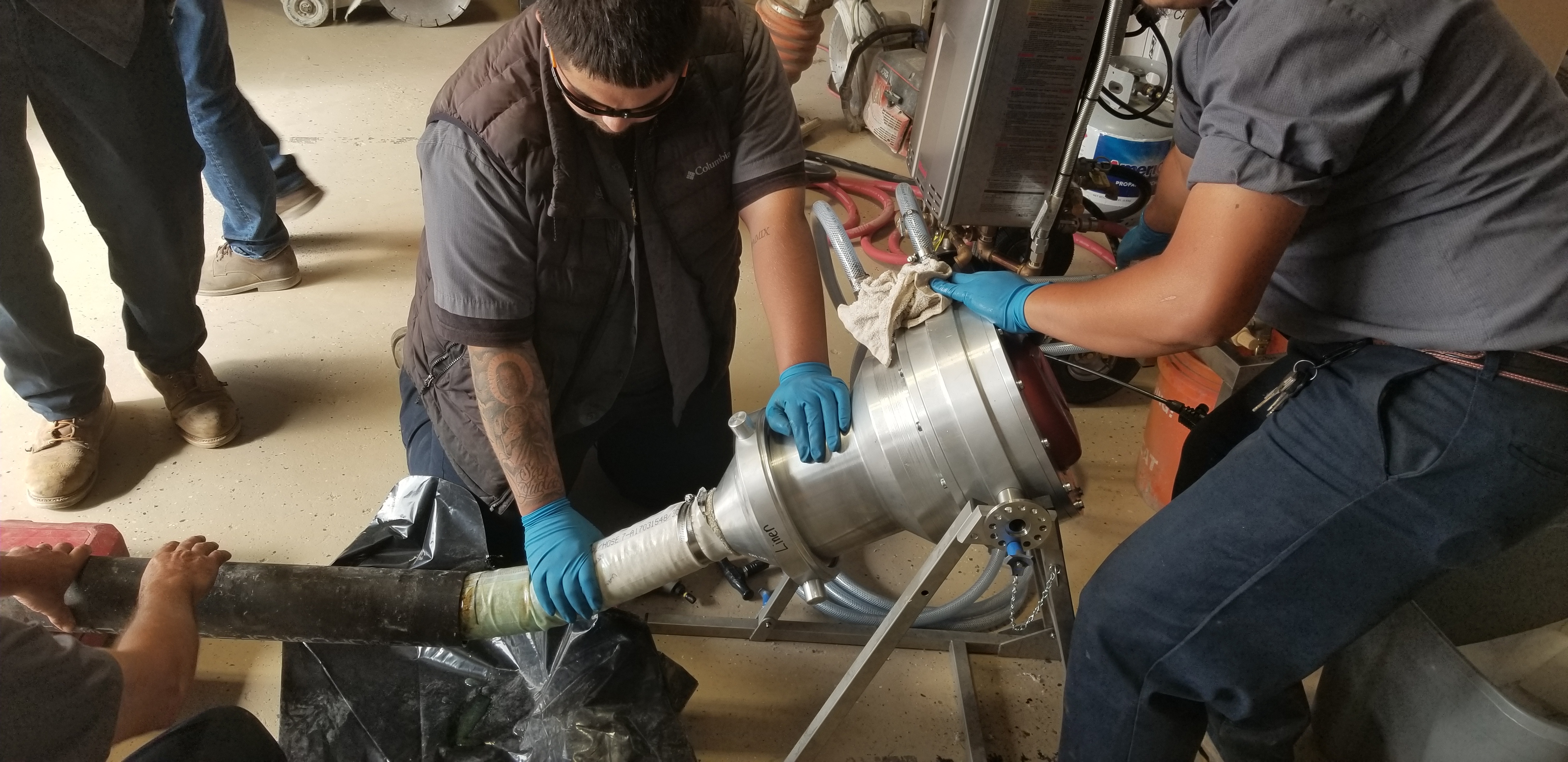

The family of Max Inversion Drums allow you to easily, safely and quickly insert flexible liners into the sewer that needs to be rehabilitated. The resin-impregnated liner is wound onto the drum axle with a control rope and inverted into the open-ended or closed-ended sewer by compressed air. The inversion pressure and the inversion speed are constantly controlled via the control elements on the inversion drum.

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

Nozzle: Storz 6” | Male Camlock 6” | Female Camlock 6”— Storz 4” nozzles can be used with the application of a SZ4-6R reducer.
Max Pressure: 14.5 psi | 1.0 bar
Max Temperature: 212°F | 100°C

DIMENSIONS & WEIGHT

Length: 2’ 7” | 79cm
Width: 1’ 10” | 57cm
Height: 3’ 1” | 95cm
Weight: 97 lbs. | 44.2 kg

ML MaxDrum TDSDownload (982.44 KB)

MaxDrum 700

Inversion Drum for Liners Up to 6” | DN150
Max Length of 144 ft | 44m

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

Nozzle: Storz 6” | Male Camlock 6” | Female Camlock 6”— Storz 4” nozzles can be used with the application of a SZ4-6R reducer.
Volume: 135 L
Max Pressure: 14.5 psi | 1.0 bar
Max Temperature: 212°F | 100°C

DIMENSIONS & WEIGHT

Length: 3’ 3” | 98cm
Width: 1’ 11” | 59cm
Height: 3’ 10” | 116cm
Weight: 114.61 lbs. | 52 kg

ML MaxDrum TDSDownload (982.44 KB)

MaxDrum 900

Inversion Drum for Liners Up to 6” | DN150
Max Length of 328 ft | 100m

After the impregnated liner has been inverted, the curing process of the liner can be accelerated with hot water, steam or UV/ LED light. This results in the creation of a new pipe in the old pipe.

Capacity*: 6” | DN150 Liner: 328’ | 100m
Nozzle: Storz 8” | Male Camlock 8” | Female Camlock 8”— Storz 6” nozzles can be used with the application of a SZ4-8R reducer.
Max Pressure: 14.5 psi | 1.0 bar
Max Temperature: 176°F | 80°C

DIMENSIONS & WEIGHT

Length: 3’ 7” | 110cm
Width: 2’ 4” | 72cm
Height: 4’ 5” | 135cm
Weight: 225 lbs. | 102 kg

ML MaxDrum TDSDownload (982.44 KB)

Wetout Equipment

Maximize the efficiency and precision of your liner installations with MaxLiner’s advanced wet out equipment. Our offerings include the Mini Calibration Unit and the Max CalibrationRoller™, each designed to meet the needs of different project scales and requirements.

Both pieces of equipment are designed to streamline the preparation process in CIPP installations, allowing your team to achieve better results with less effort and time. Explore our wetout solutions to find the right fit for enhancing your pipeline rehabilitation projects.

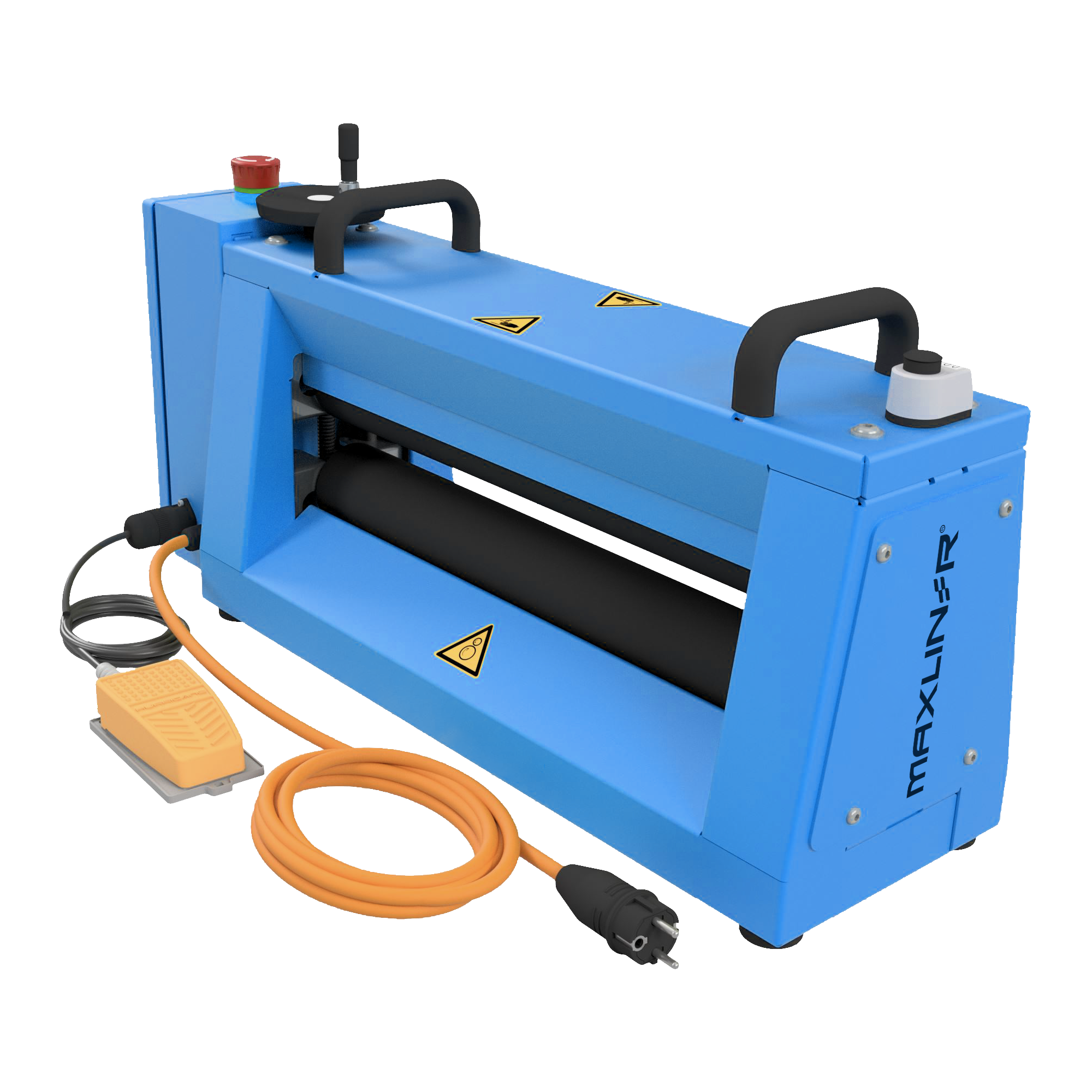

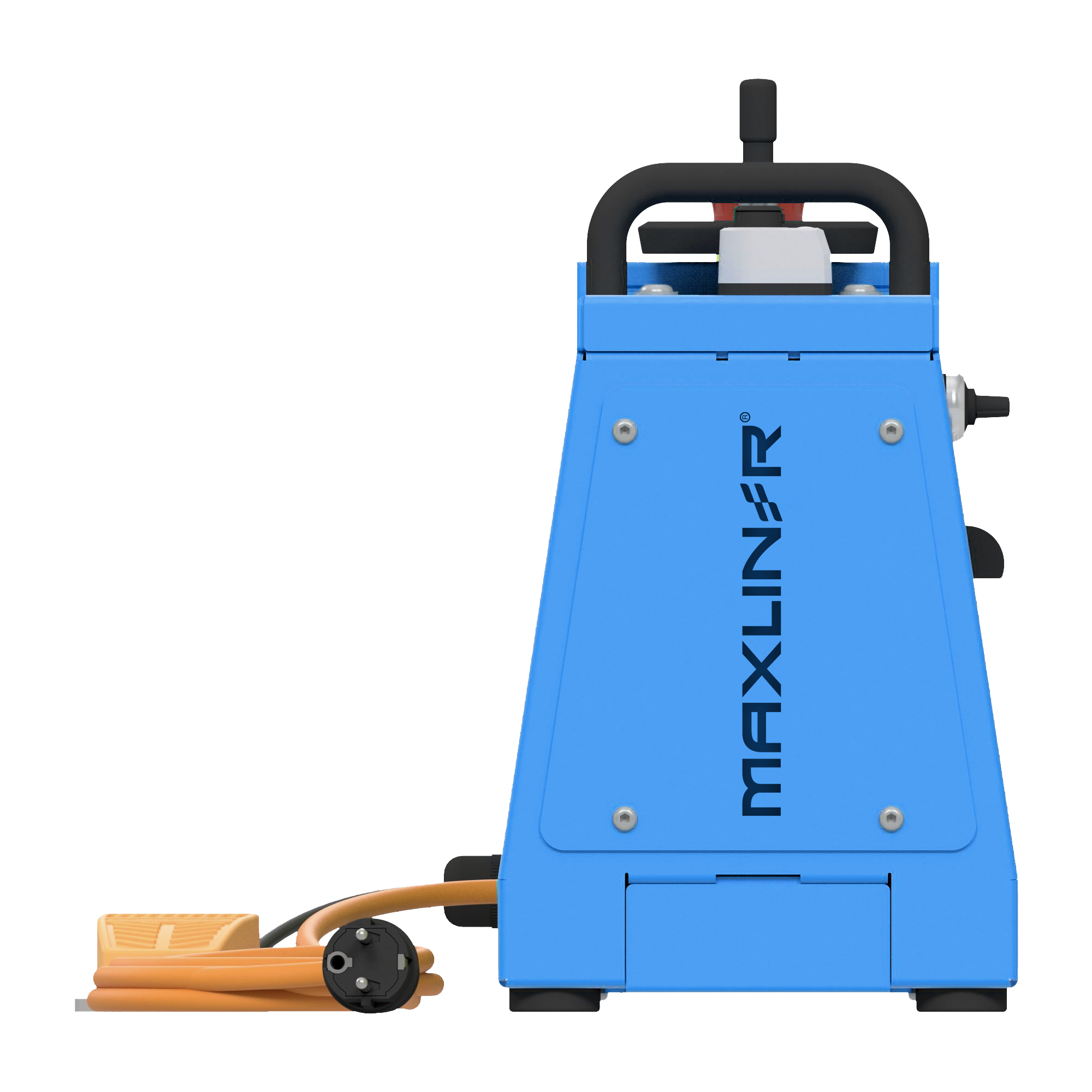

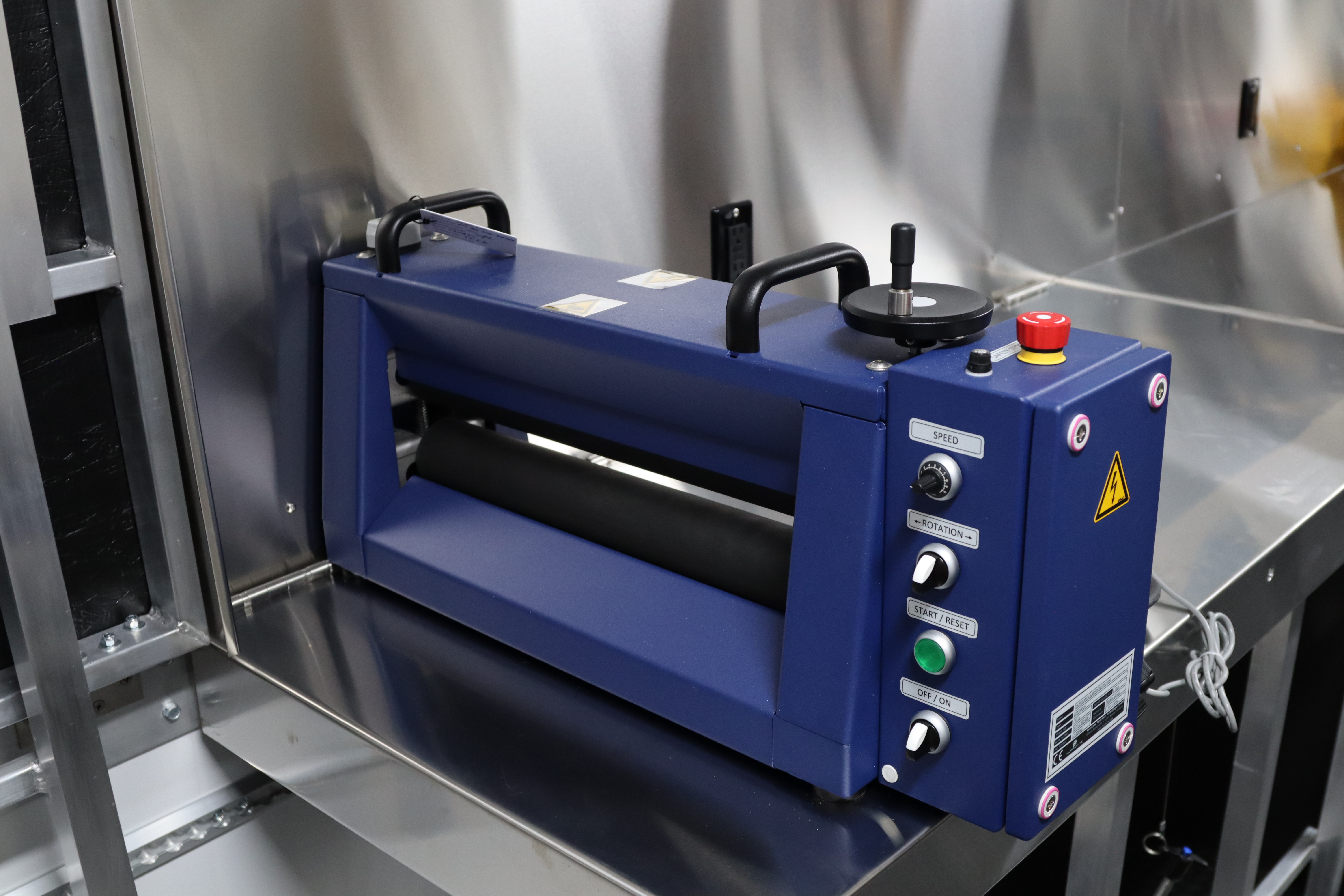

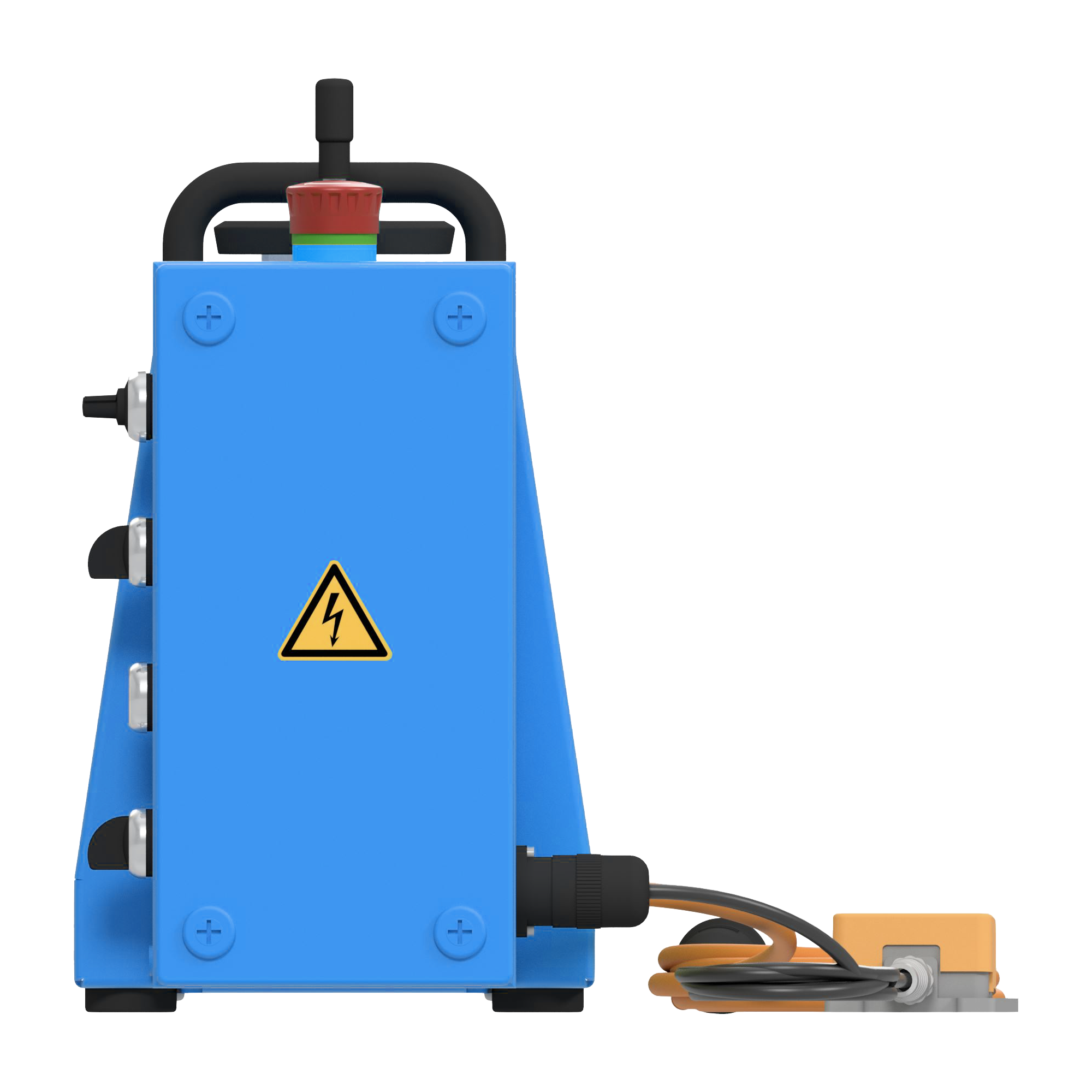

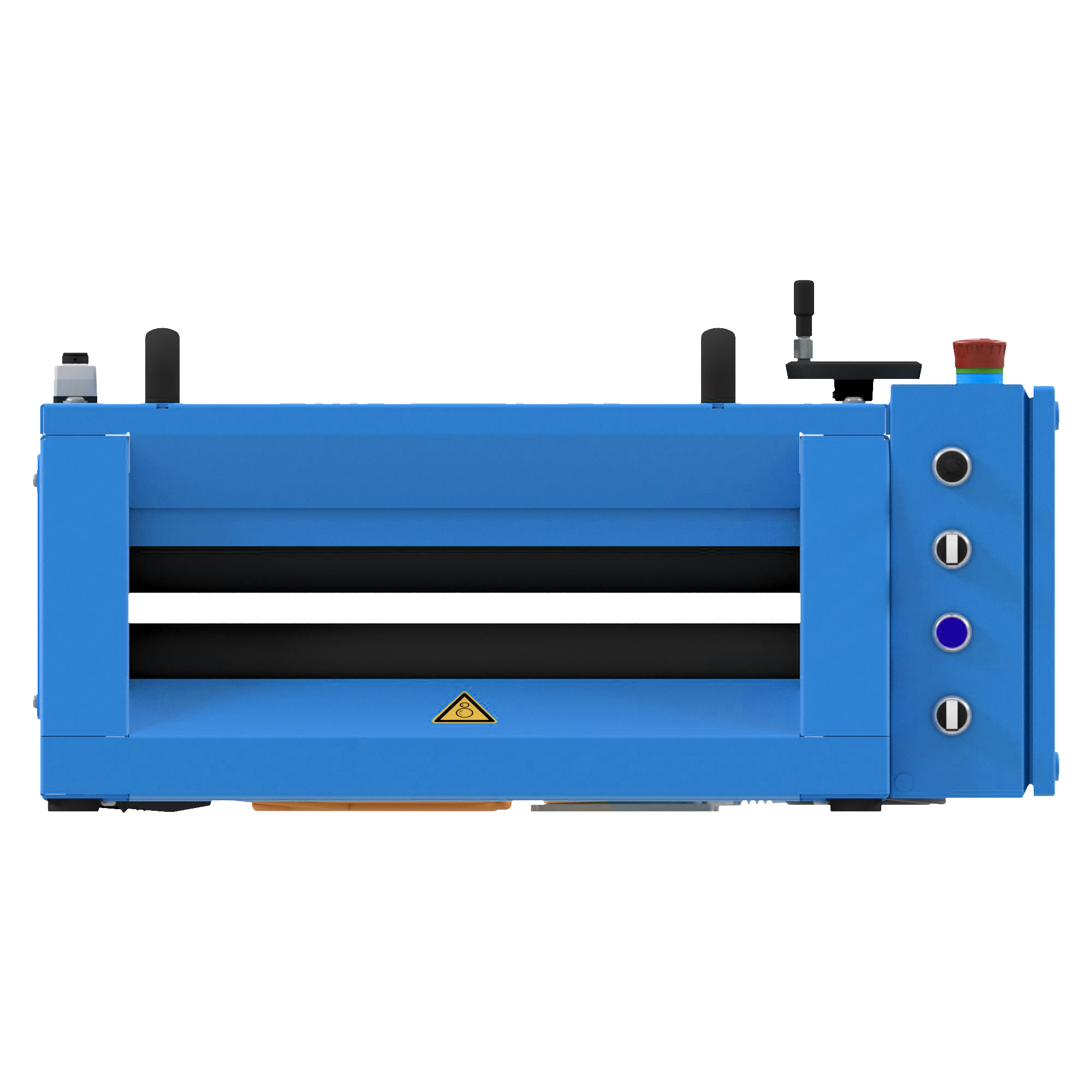

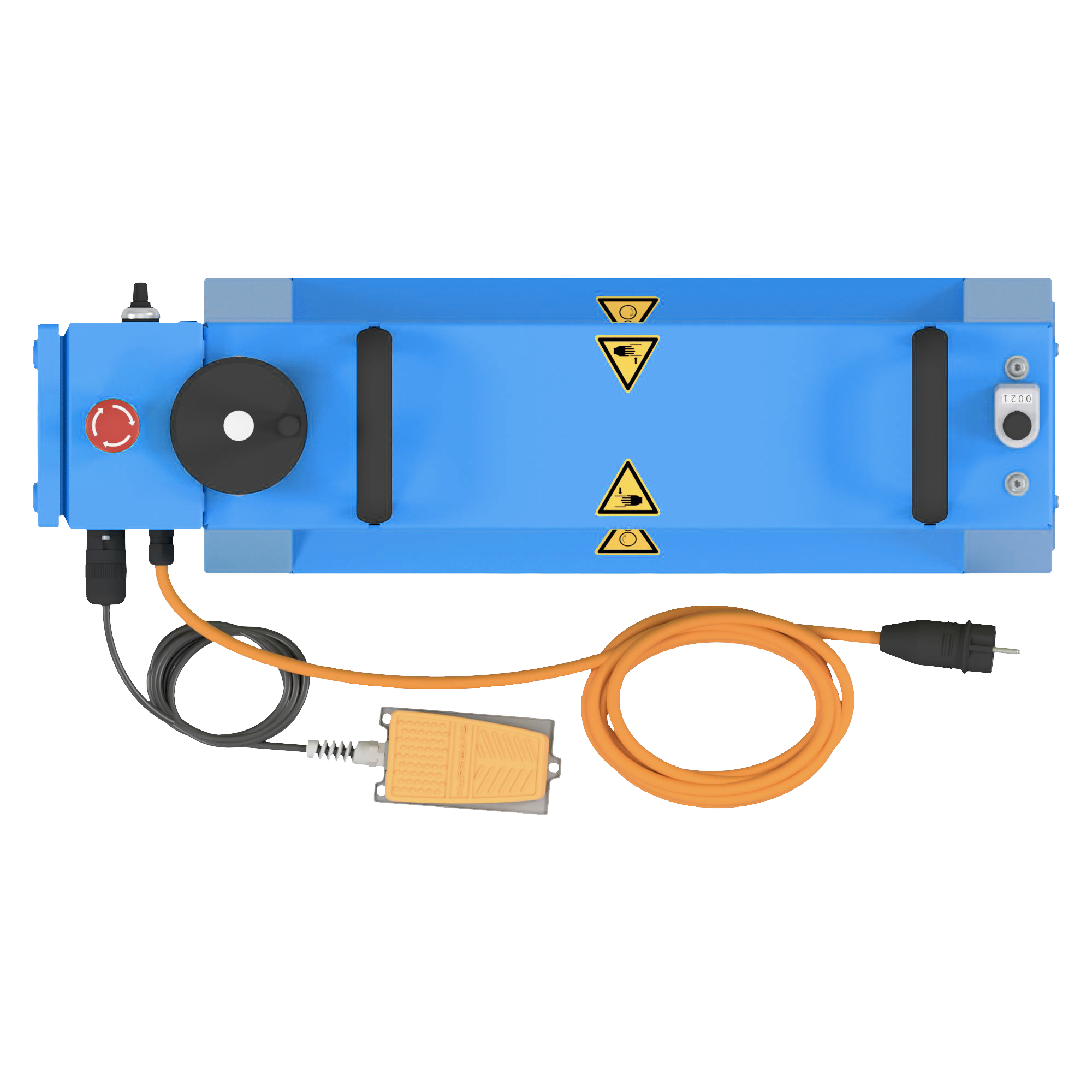

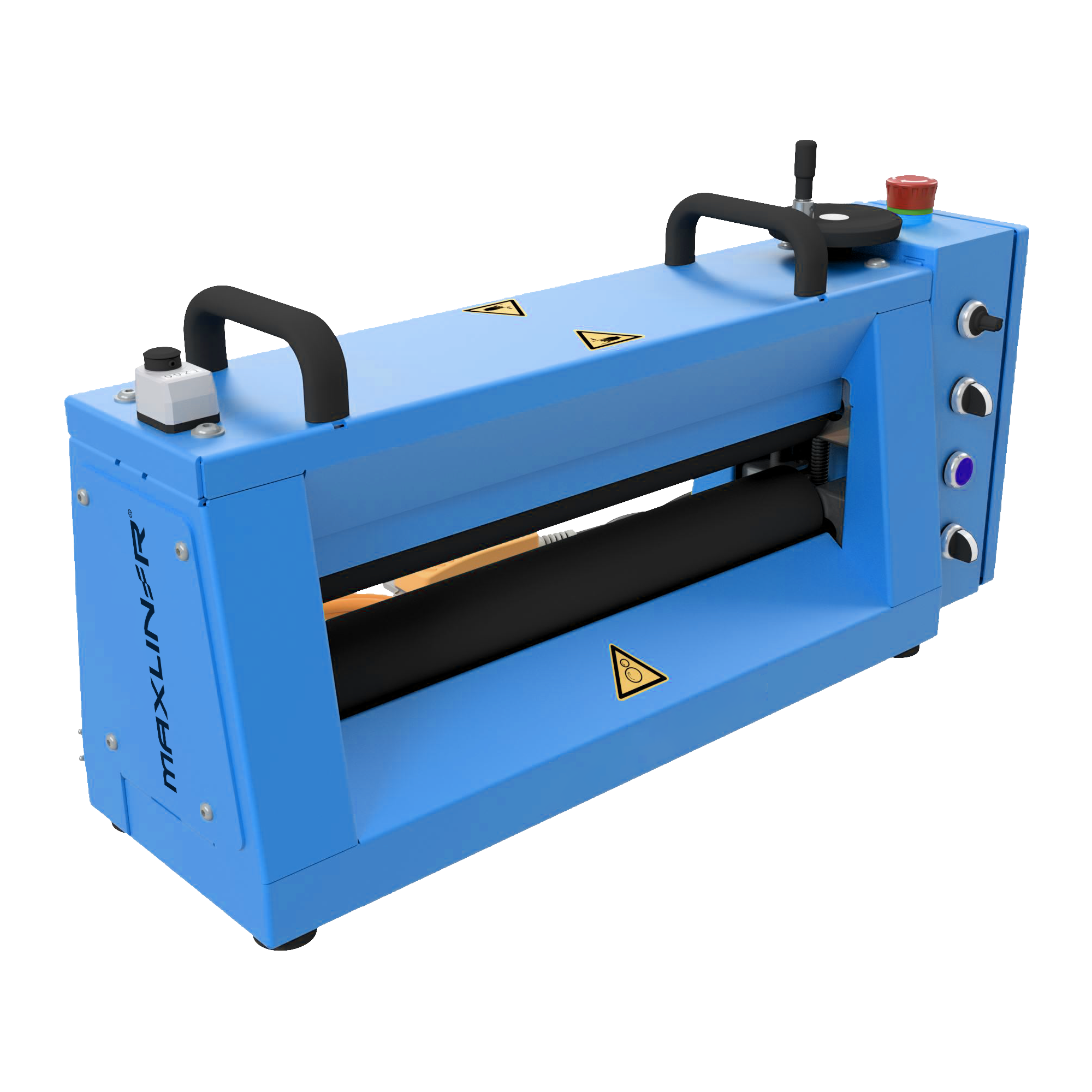

Mini Calibration Unit: MaxLiner’s material-friendly impregnation Mini Calibration system is ideally suited for even distribution and complete resin saturation into the liner for trenchless sewer rehabilitation. Do The Mini Calibration System for pipes up to 12” | DN300 is a convenient, user-friendly solution in a new design. This compact version is lightweight and features electronic calibration. The roller spacing, which determines the wall thickness is controlled using a handle located on the top of the unit. The pull-through speed is defined and controlled electronically via a rotary control. Rubber feet on the underside ensures the unit’s stability.

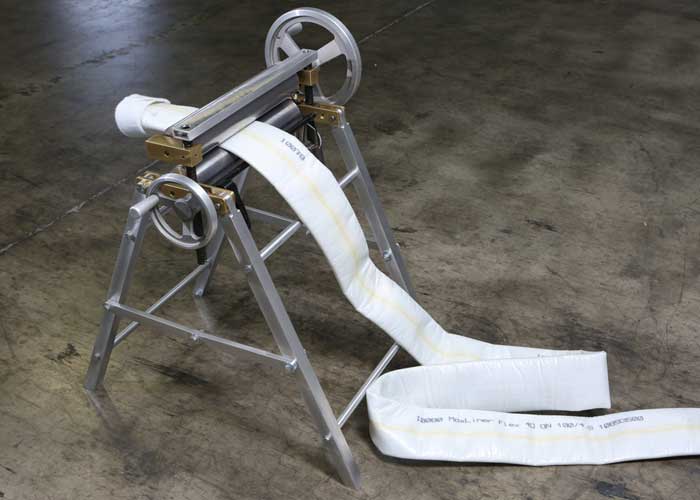

Max CalibrationRoller™: For manual operations, the Max CalibrationRoller provides a portable solution to evenly distribute mixed resin through liners. It comes equipped with shims ranging from 0.2”-0.43” | 5mm-11mm to achieve the correct gap setting for optimal wet-out, ensuring even resin coverage and consistent liner quality.

ML Mini Calibration Unit TDSDownload (436.50 KB)ML Calibration Unit Mini BrochureDownload (1.98 MB)

Curing Equipment

MaxLiner offers field-proven curing equipment designed to suit your CIPP lining needs, ensuring optimal curing results. For traditional curing of standard liners, our equipment provides an affordable and efficient solution.

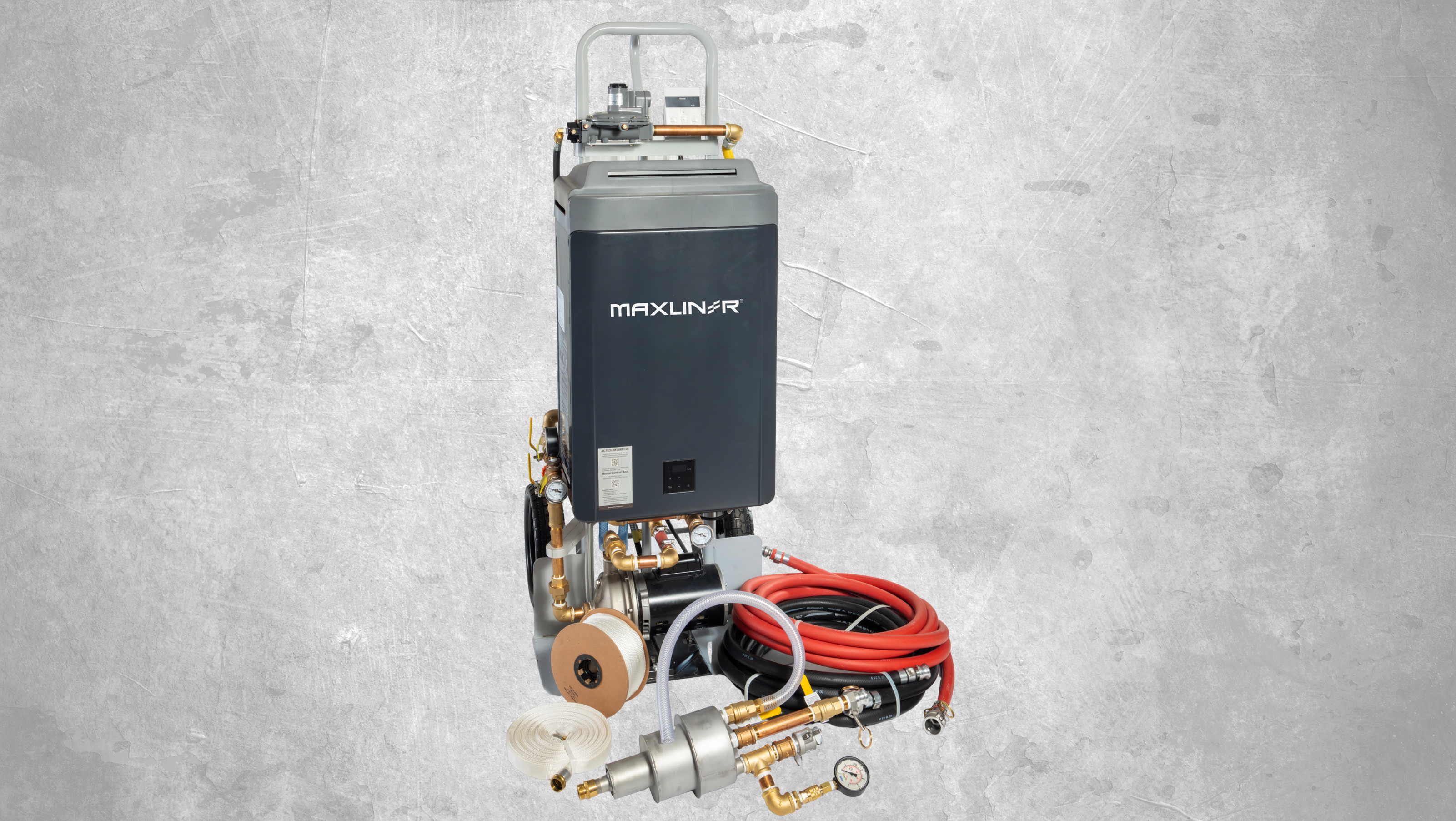

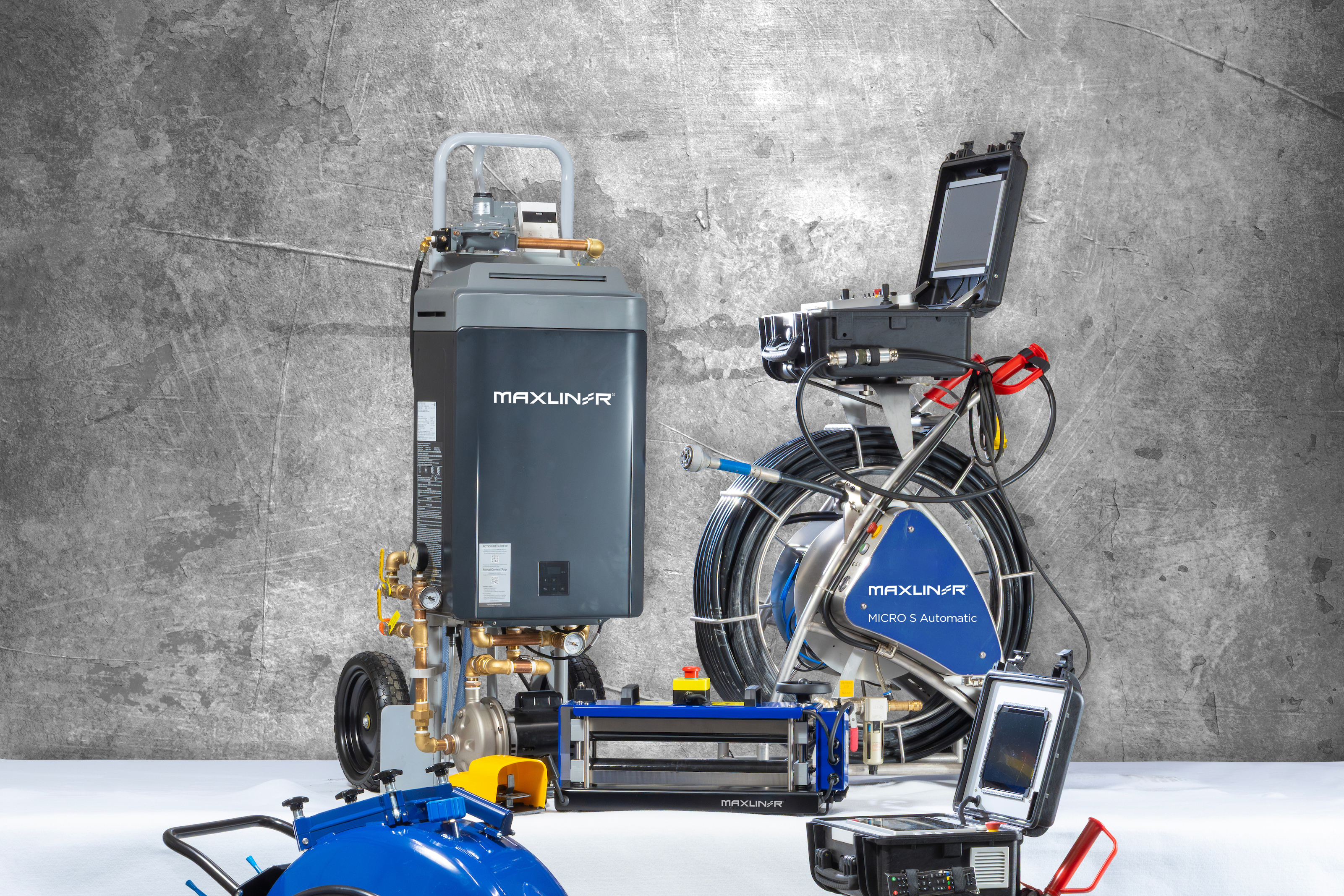

Max HotKick™ 2.0

A mobile hot water curing system featuring a built-in recirculating pump, ideal for use with 3”-8” | 76mm-203mm diameter pipes. This propane-fueled unit includes essential accessories like a curing manifold, pressure and temperature gauges, and recirculation hoses, making it perfect for on-site applications.

Max Inferno™

Compact and electrically powered, this hot air curing system is designed for smaller diameter pipes 3”-6” | 76mm-152mm and is particularly effective in vertical applications and areas where hot water curing isn’t feasible. It comes with a complete set of curing manifolds and accessories for easy transportation and setup.

ML Max Hotkick TDSDownload (449.93 KB)

MAXIcure UV Cure

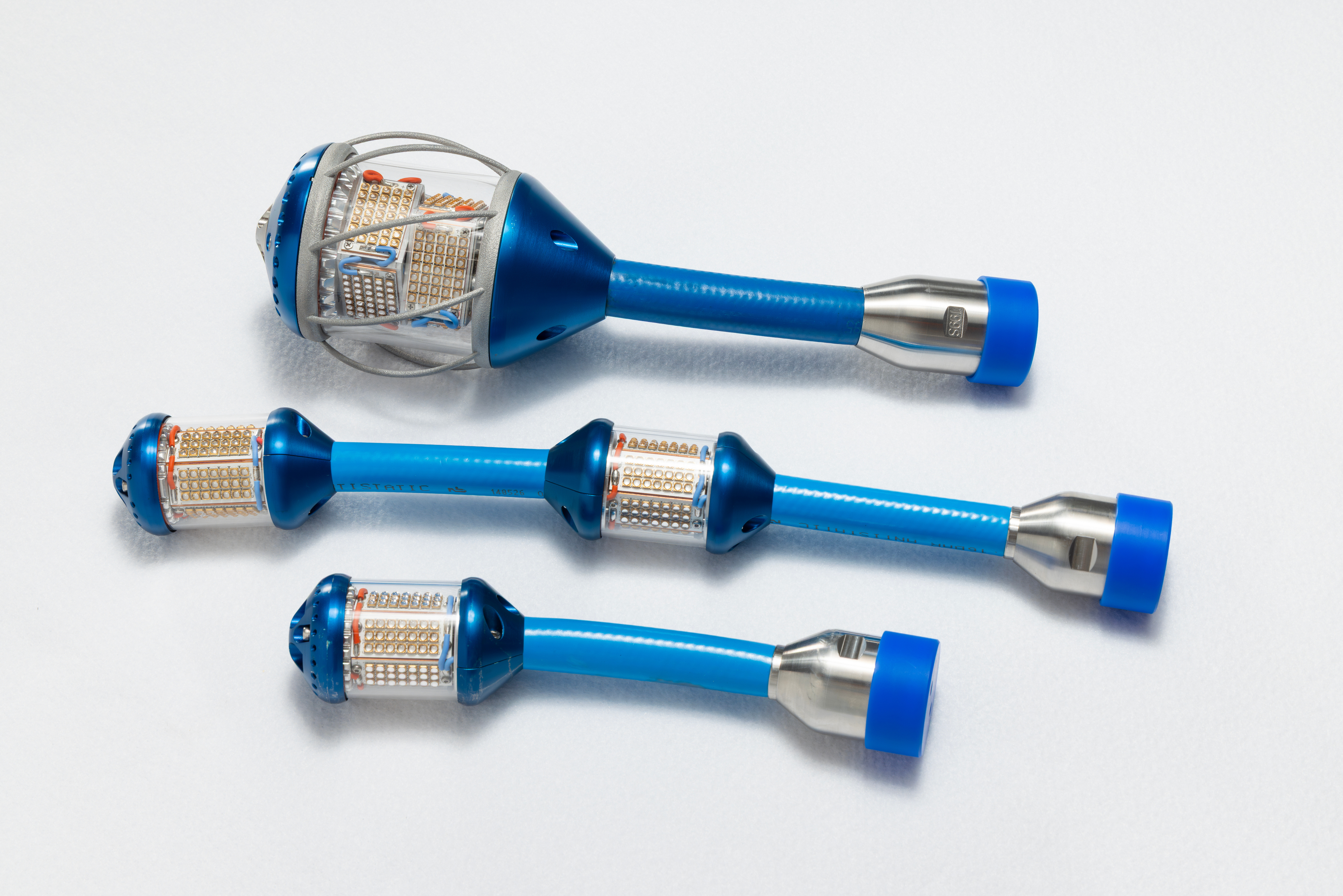

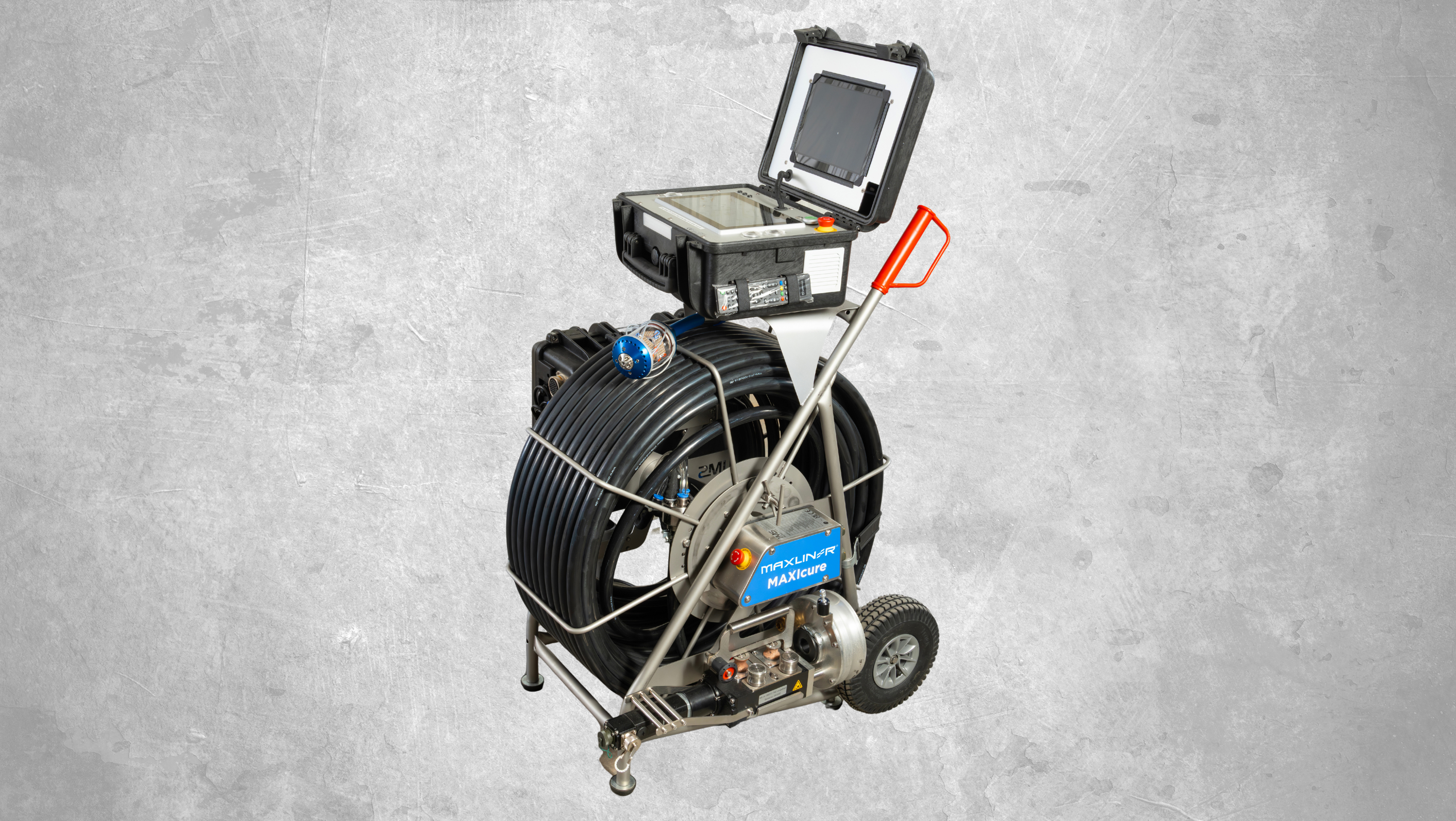

UV curing with LED technology, the MAXIcure system enhances job site efficiency significantly. Suitable for curing felt, hybrid, and fiberglass liners, this system features interchangeable light heads for different pipe sizes and configurations, along with wireless connectivity for monitoring the curing process.

Power: Choice of 1 x 600W LED lamp, 2 x 600W LED lamp, 1 x 1200,W LED lamp
Light Source Diameter Ranges: 1 x 600W light source: 3”-6” | 75-150mm — 2 x 600W light source 4”-12” | 75-300mm. Optional: 1 x 1200W light source 6”-20” | 150-500mm. Ask for details.
Cable Drum Cable reel with 229’ | 70m of supply
Control: Input project curing parameters via USB download to system. Remote monitoring and maintenance capable, via Wi-Fi hotspot. System records and documents length, temperature, inner pressure, speed, and electrical power output
Equipment / Special Features: 1 x 600W light source can navigate bends in relined pipes > Up to 90°, as small as 4” | DN100 > In straight pipe, as small as 3” | DN75. 1 x 1200W light source can navigate bends up to 90° in pipes 8”| 200mm and up. Compressed air system cools unit during installation. Control unit comes with built-in monitor and curing software
Equipment Dimensions & Weight: Cable drum with control case: 37”L x 24”W x 42”H | 950x600x1070mm. Weight of cable reel, retraction unit, and control case: 176 lbs | 80 kg

ML MAXIcure TDSDownload (211.76 KB)ML MAXIcure FlyerDownload (1.57 MB)

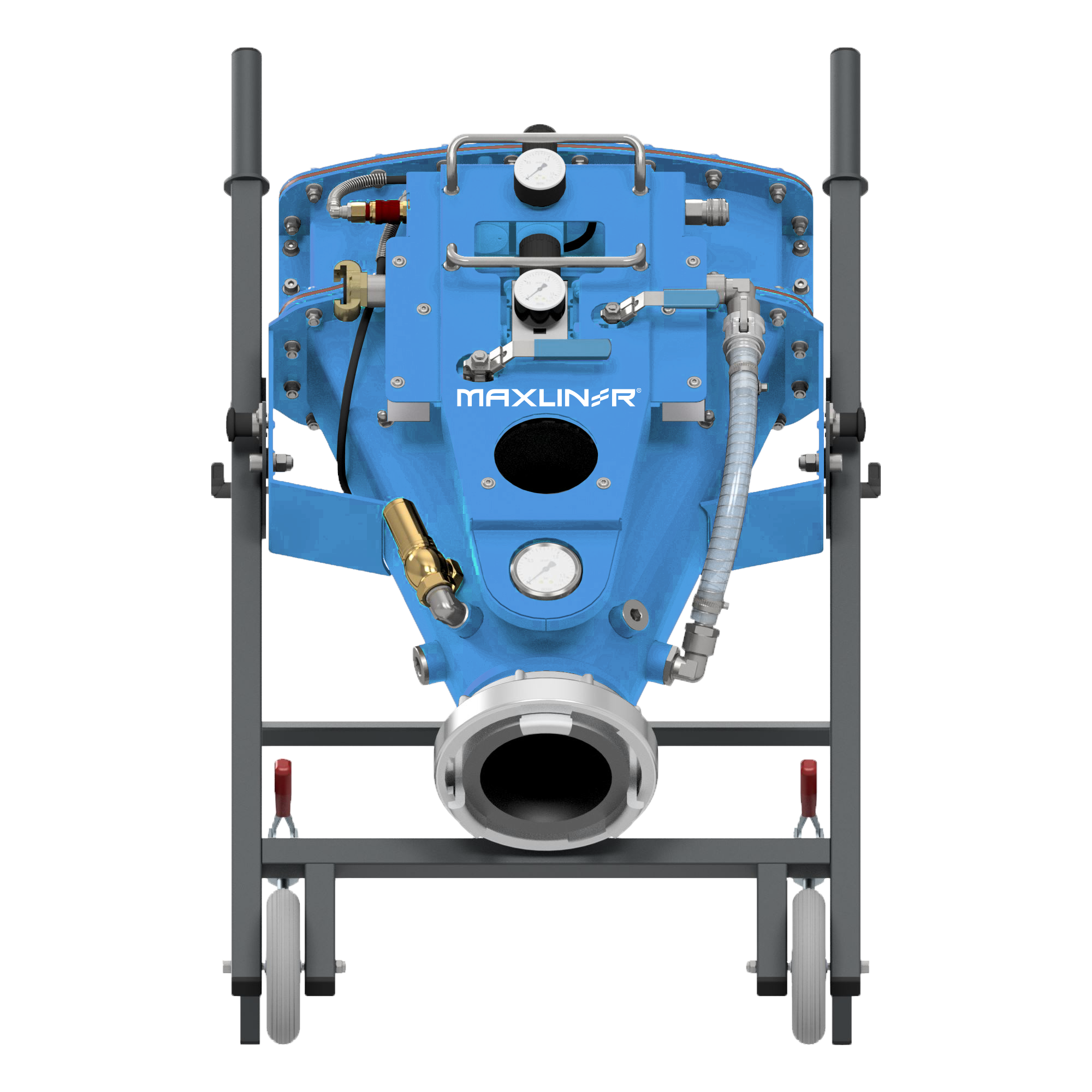

Max Shooter 200

Economical Option For Liner Inversion

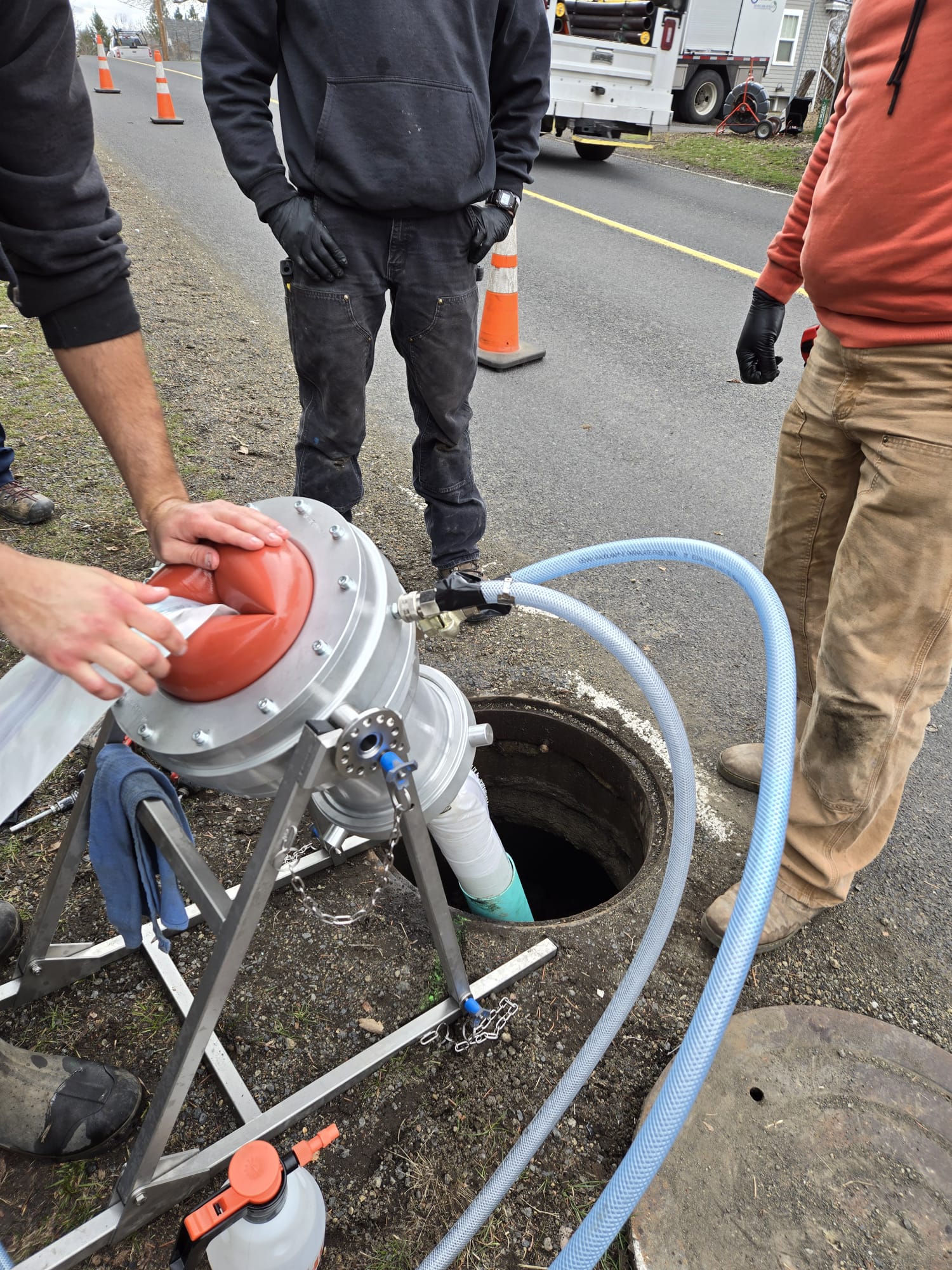

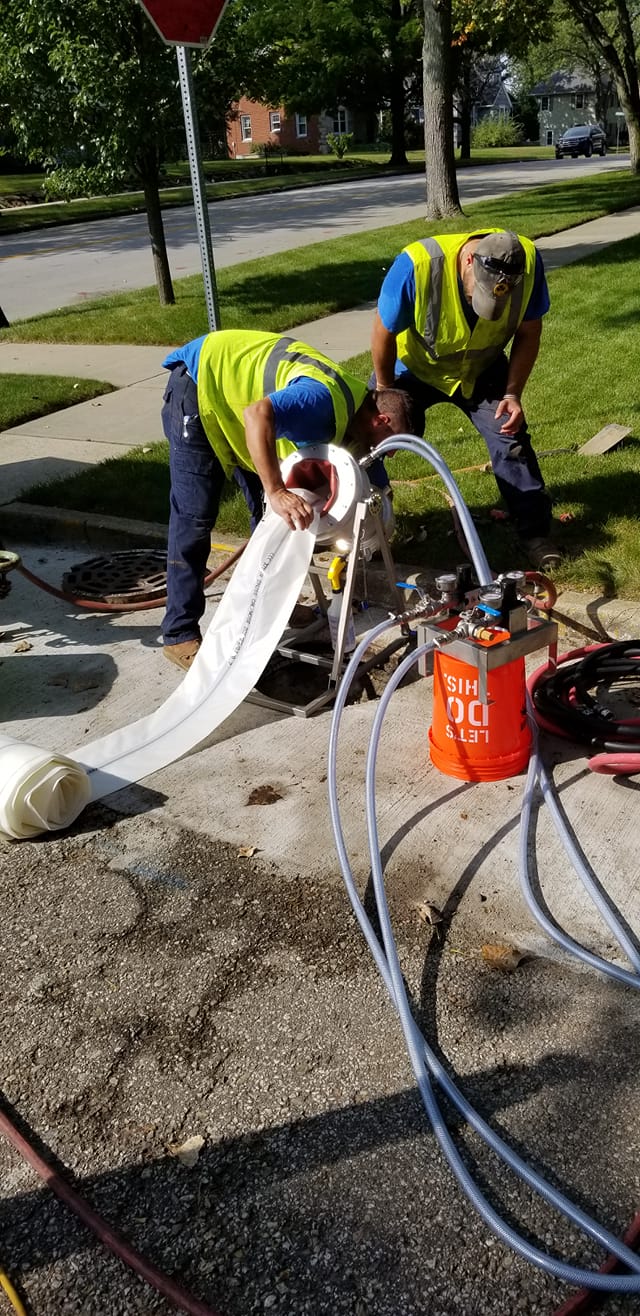

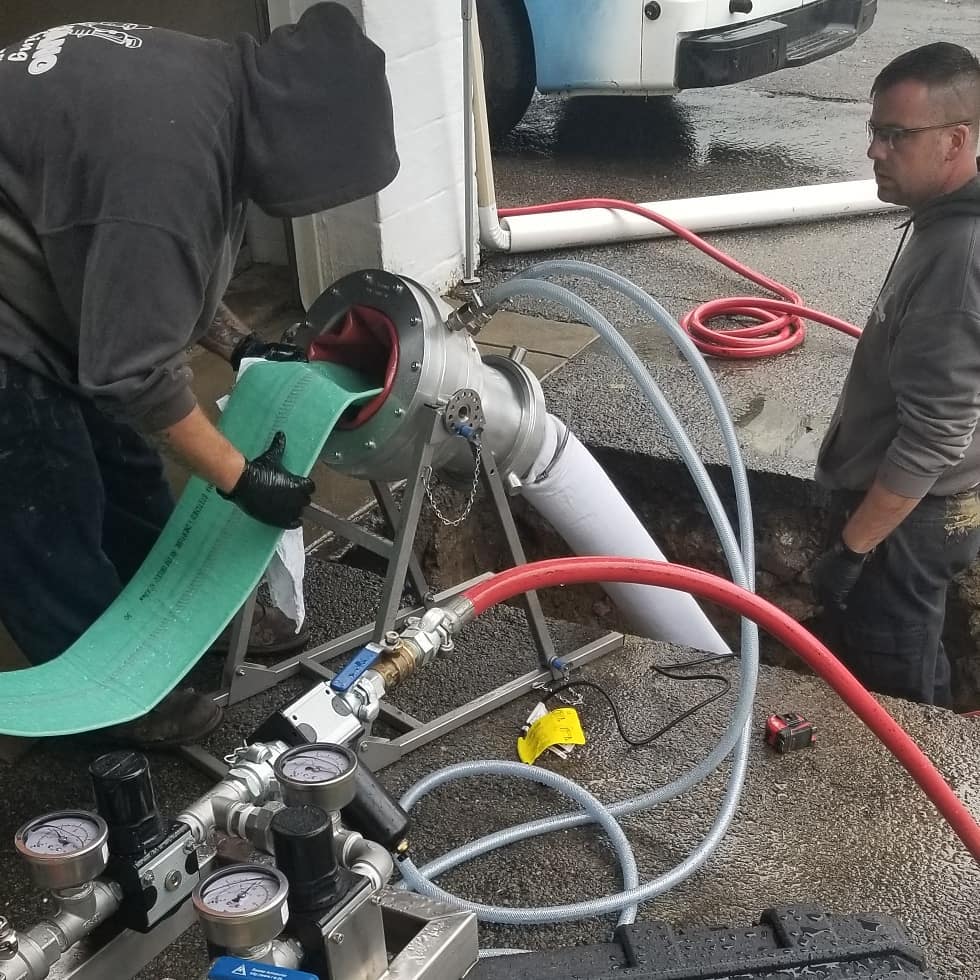

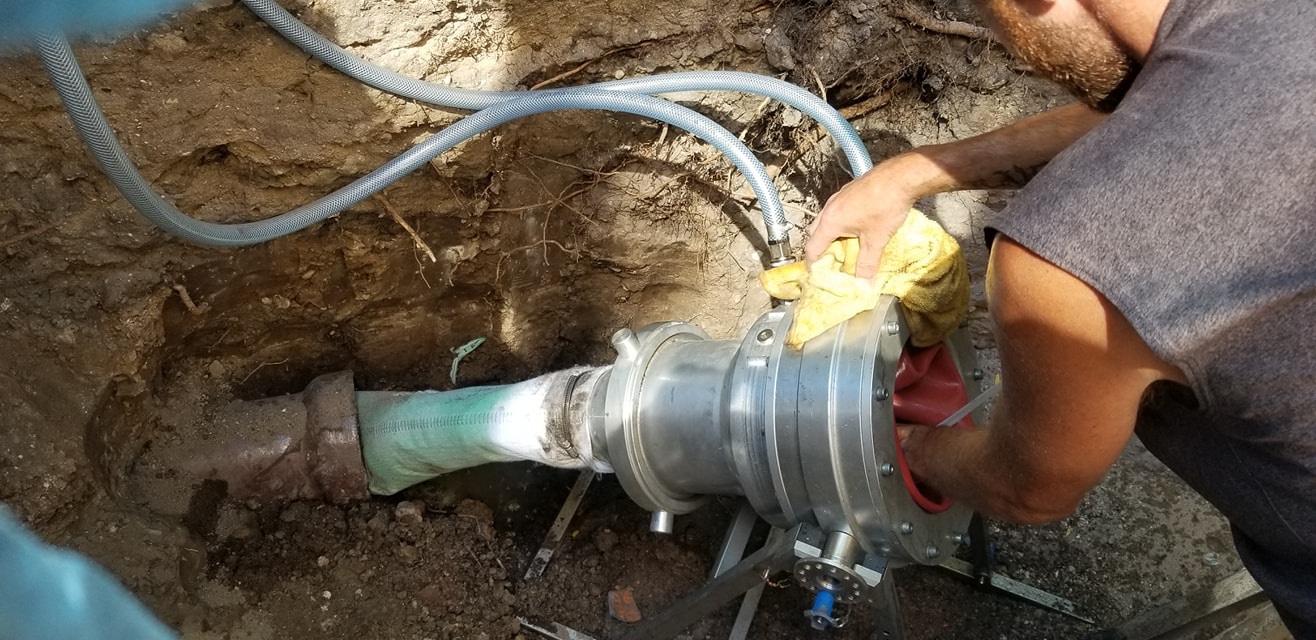

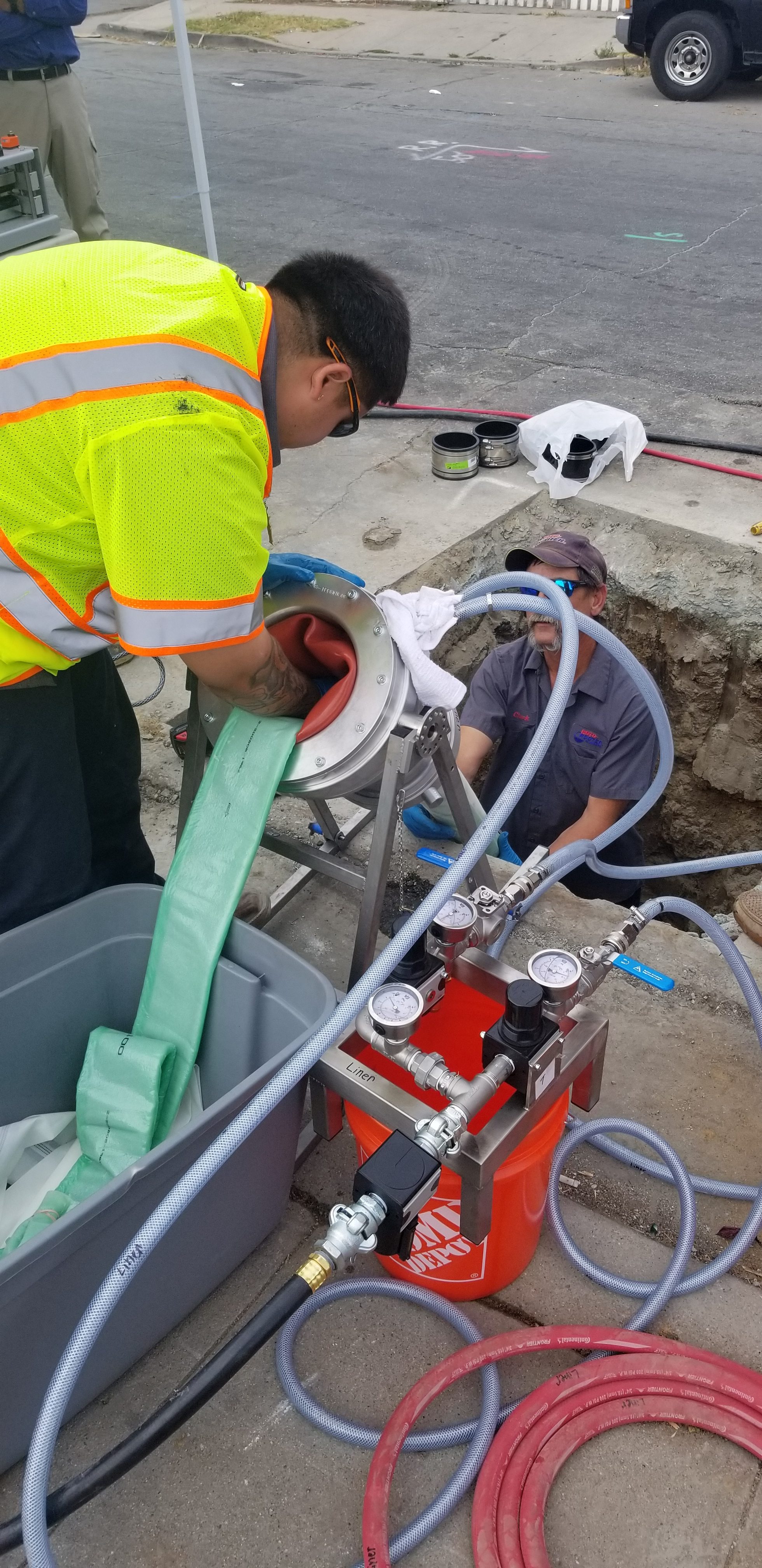

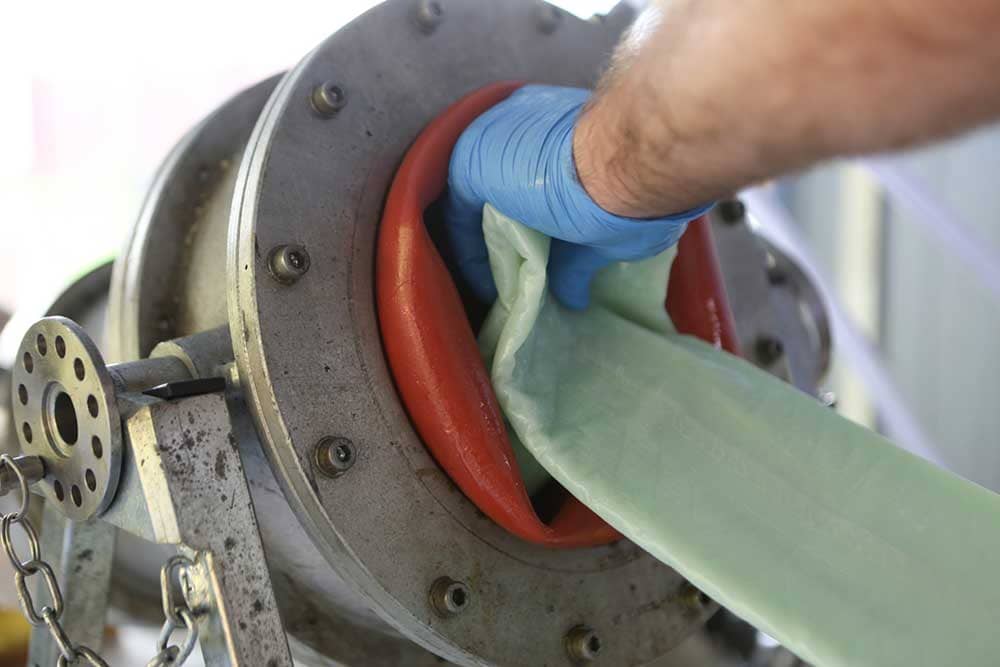

The Max Shooter 200 is used for CIPP liner inversion up to a size of 8” | DN 200 without length limitation. Its compressed air controlled system ensures smooth insertion of the liner into the pipe.

Control Panel: Devices and fittings in functional order
Practical: Carrying handles on both sides for quick setup of the system
Mobility: 100% ready for use and perfect for lateral connection rehabilitation
Compact: Foldable frame for space-saving storage
Flexible: Camlock or Storz cones adaptable

ML Max Shooter 200 TDSDownload (635.54 KB)

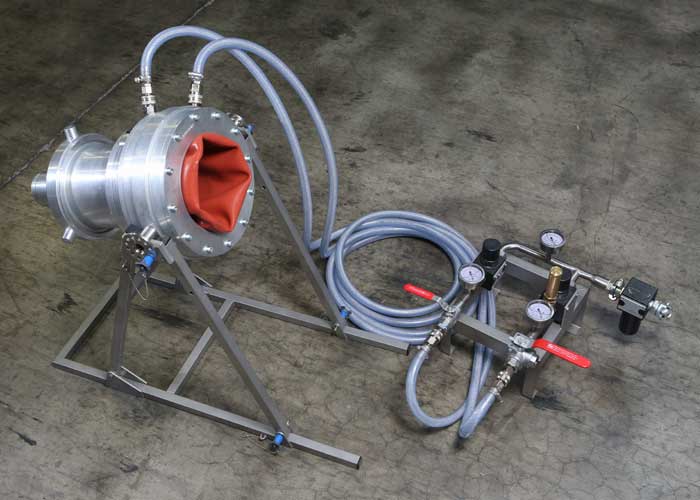

Max LinerGun™
